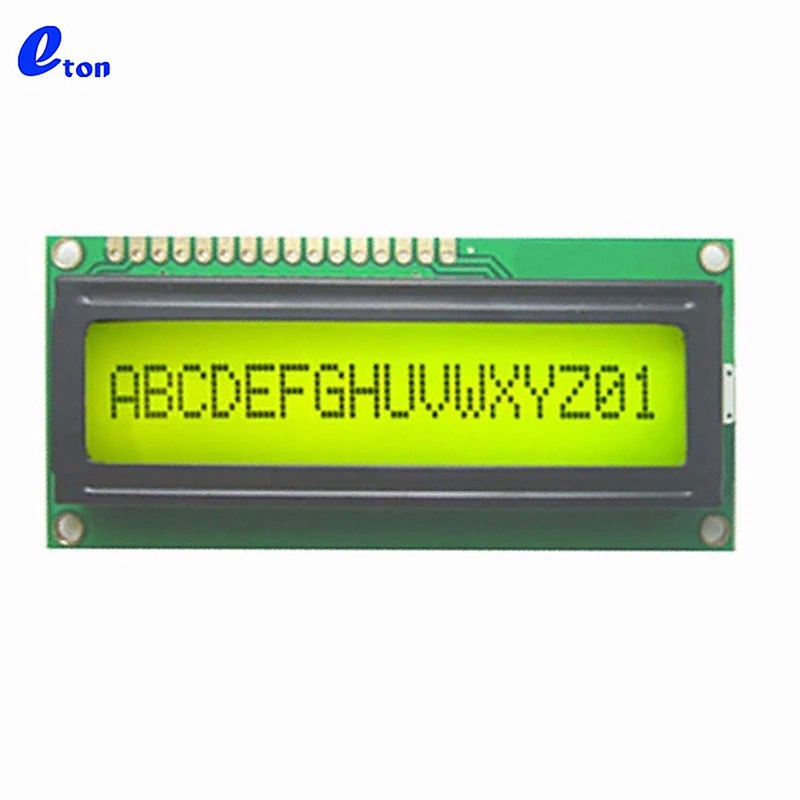

16x1 1601 161 Colour Monochrome Panel STN LCD Module Display
16x1 1601 161 Colour Monochrome Panel STN LCD Module Display

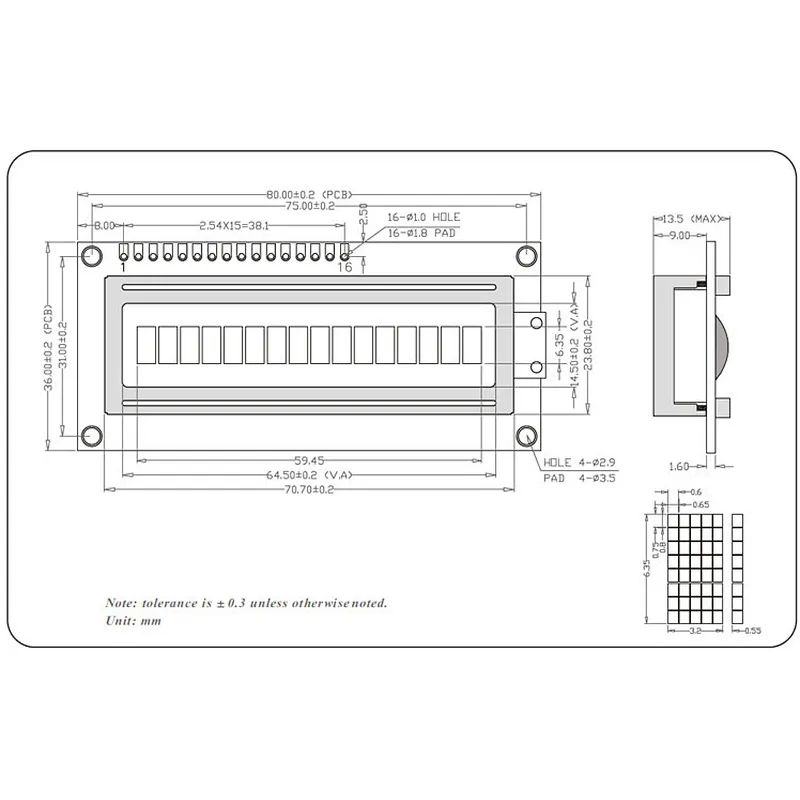

| Outline Size(mm) | 80.0(L)× 36.0(W) ×13(T)MAX |
| Lcd Type | STN, Y-G/BLACK, TRANSFLECTIVE/ POSITIVE |
| Display type | 16(characters) ×1(line) |
| View Area(mm) | 64.6×16.0 |
| Display Area(mm) | 60.8×6.0 |
| Dots size(mm) | 0.6×0.7 |
| Dots pitch(mm) | 0.66×0.76 |
| Character Size(mm) | 3.24×6.02 |
| Character Pitch(mm) | 3.84×6.72 |
| Controller & driver | S6A0069X01-C0CX |
| View Direction | 12 O’Clock |
| Interface mode | --- |
| VDD&VOP(Type) | 5.0 V &5 V |
| Backlight(Type) | Y-G |
| Operation Temp.(℃) | -20 to +70℃ |
| Storage Temp.(℃) | -30 to +80℃ |

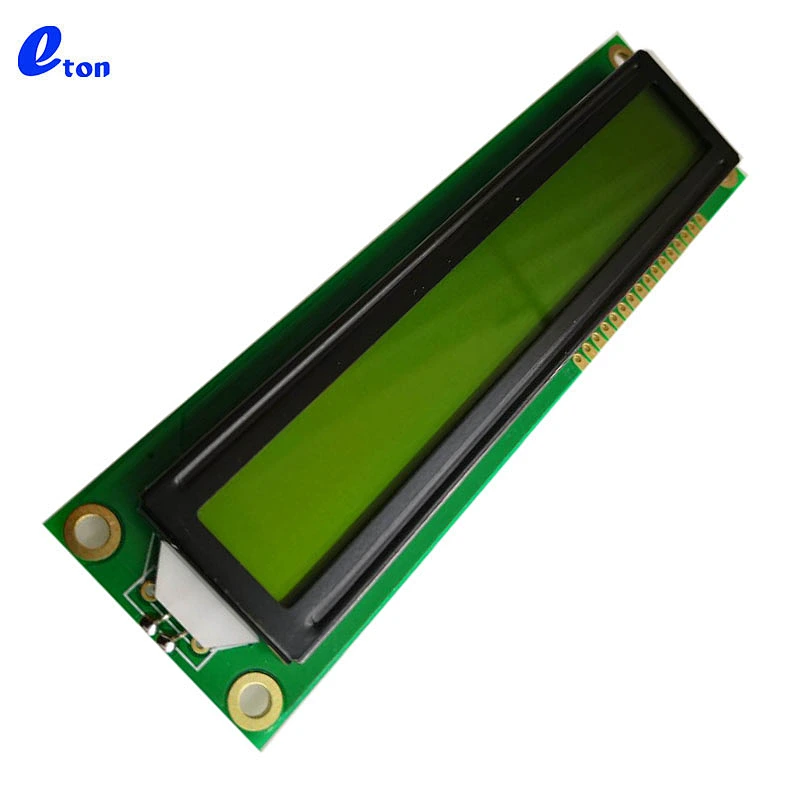

16x1 1601 161 Colour Monochrome Panel STN LCD Module Display

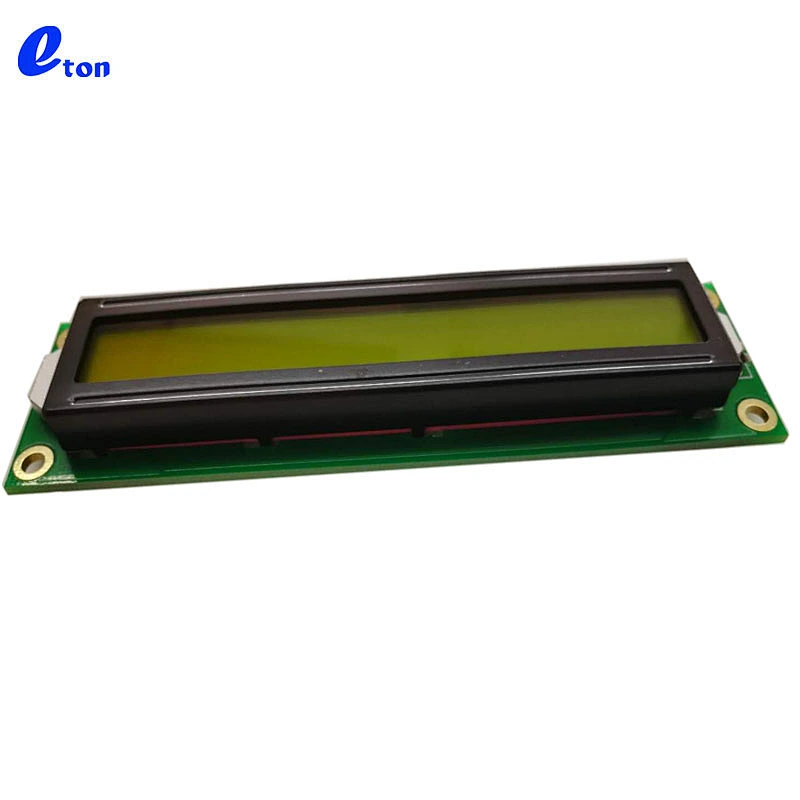

16x1 1601 161 Colour Monochrome Panel STN LCD Module Display

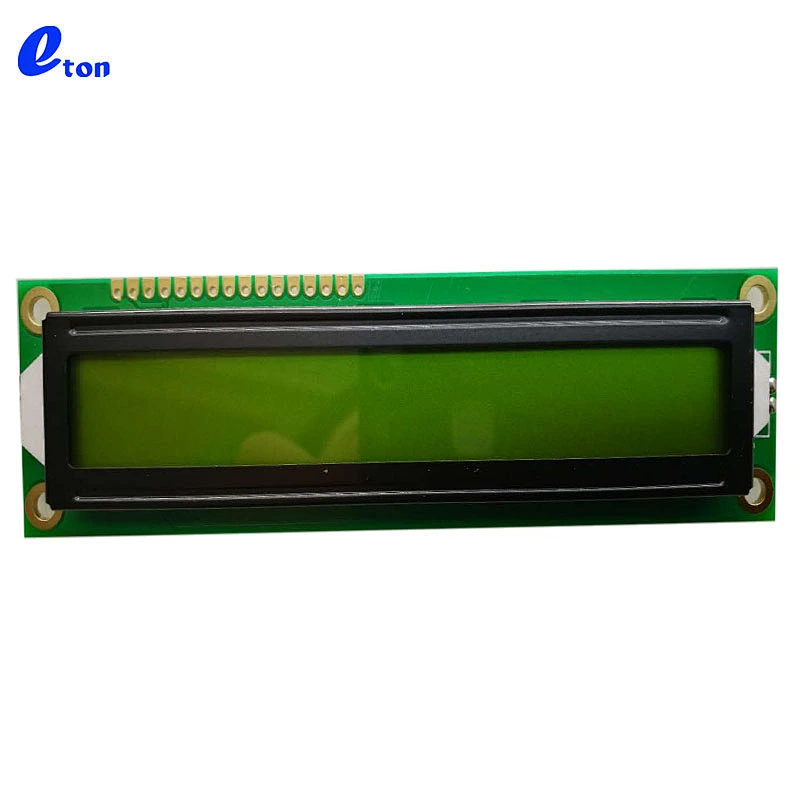

16x1 1601 161 Colour Monochrome Panel STN LCD Module Display
Package: Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton
Shipping : Shipping via DHL, UPS,TNT, FedEx Express, Air mail, and seamail
Application
Ralated product
1.Q: Are you manufactory or trade company?
A:We are professional manufactory, which specializes in TN, HTN, FSTN, STN monochrome LCD, LED backlights, LCD modules more than 6 years in Dongguan ! Our advanced full set equipments make sure good quality and competitive price!
2.Q: How can I get the samples?
A: Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect
3.Q: How long can I expect to get the sample?
A:Contour drawing: 2-3 days Sample time: 10-15 business days
4.Q:Will you offer free sample?
A: Yes, we usually provide 5-8pcs free samples, you just need to pay the tooling charge.
6.Q: Can you design the lcd in acccordance with our demand?
A:Sure.We will give you the best tooling charge.
7.Q:How to place orders ?
A:If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
1)Product information-Quantity,part number
2)Delivery time required.
3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if you have any in China.
8.Q:How long of mass production ?
A: 25-30 business days. It depends on different order quantities and part number.
