Product Description

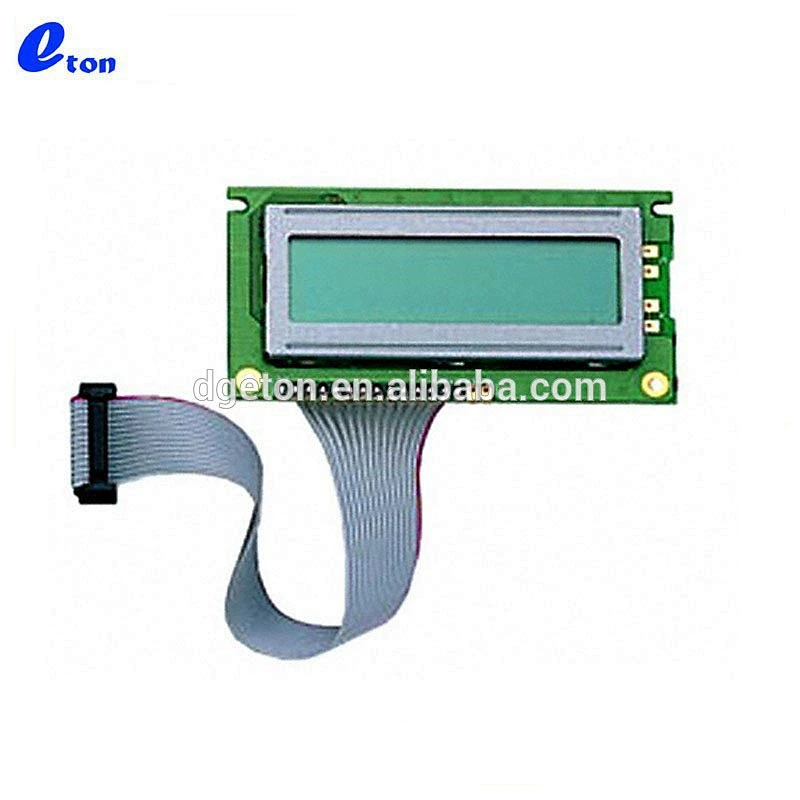

LCD PARALLEL 2X16 CABLE CHARACTER LCD DISPLAY
| LCD Type | LCD - Monochrome |
| Display mode | Reflective |
| Number of Characters | 32 |
| Display Format | 16x2 |
| Character Format | 5 x 8 Dots |
| Character Size | 5.00mm H x 3.00mm W |
| Outline Dimension | 81.00mm x 36.00mm x 6.00mm |
| Viewing Area | 73.50mm L x 25.00mm W |
| Backlight | LED - RED |
| Voltage -Supply | 5 V |
| Operating Temperature | 0°C ~ 70°C |
| Dots size | 0.60mm W x 0.65mm H |
| Interface | Parallel |
| Text color | Gray |
| Background color | Green |
Product Range
1. LCD Type: TN, HTN, STN, FSTN, VA
2. Any digitals, icons, graphic can be customized and designed according to your requirement
3. Polarizer type: Transmissive, Transflective, Reflective
4. Connector Type: FPC, Metal Pins, Zebra, Heat-seal
5. Glass thickness: 1.1mm, 0.7mm, 0.55mm
6. Various Backlight color available
7. IC Mounting Method: COB,COG,TAB etc
Main Application:
Wire tester | Communications equipment |
Instrument & meter | Car audio-visual |
Industrial equipment | Home appliances |
Manipulator controller | Consumption electronics |
Medical Equipment | POS |
Electricity,Power Controller Device | Beauty Equipment, |
Semi auto analyzer | Medical Equipment |
ECG | Injection Machine |
Packaging & Shipping
| Package: | Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton |
| Shipping : | Shipping via DHL, UPS,TNT, FedEx Express, Air mail, and seamail |
FAQ
1.Q: Are you manufactory or trade company?
A:We are professional manufactory, which specializes in TN, HTN, FSTN, STN monochrome LCD, LED backlights, LCD modules more than 6 years in Dongguan ! Our advanced full set equipments make sure good quality and competitive price!
2.Q: How can I get the samples?
A: Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect
3.Q: How long can I expect to get the sample?
A:Contour drawing: 2-3 days Sample time: 10-15 business days
4.Q:Will you offer free sample?
A: Yes, we usually provide 5-8pcs free samples, you just need to pay the tooling charge.
6.Q: Can you design the lcd in acccordance with our demand?
A:Sure.We will give you the best tooling charge.
7.Q:How to place orders ?
A:If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
1)Product information-Quantity,part number
2)Delivery time required.
3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if you have any in China.
8.Q:How long of mass production ?
A: 25-30 business days. It depends on different order quantities and part number.
