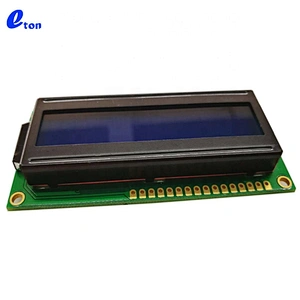

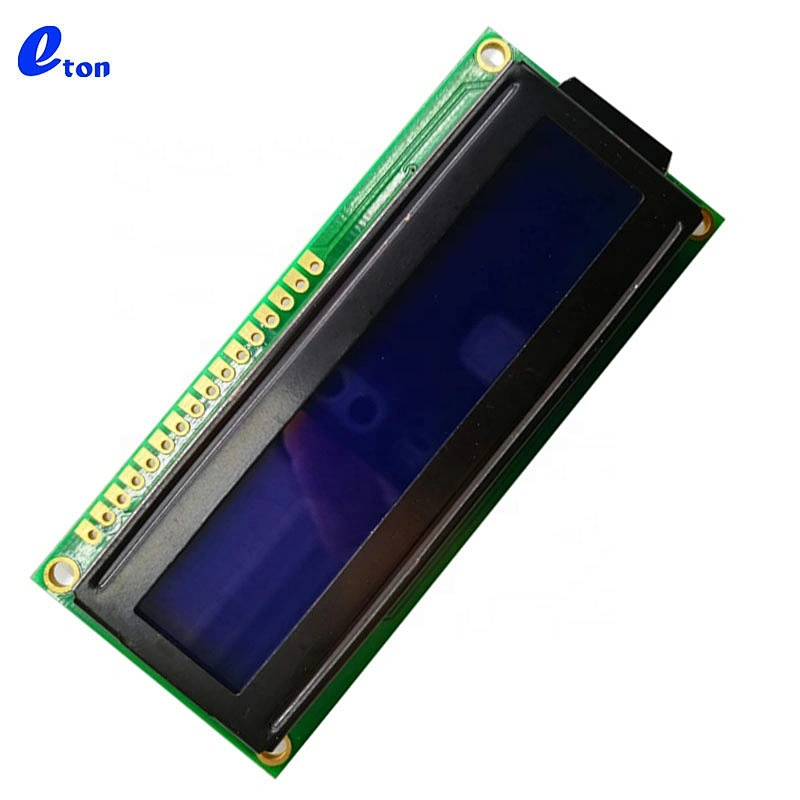

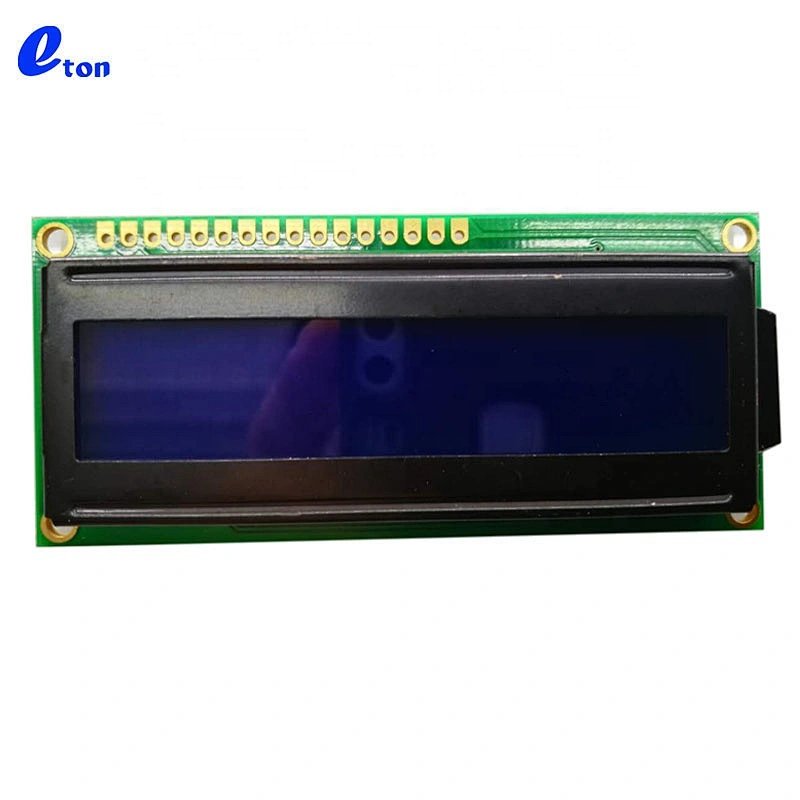

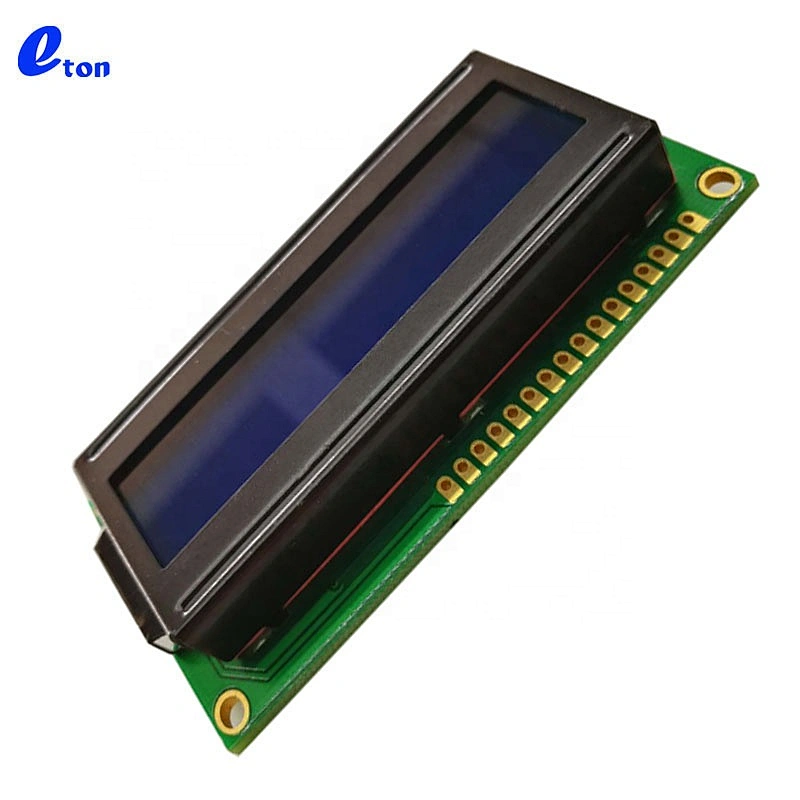

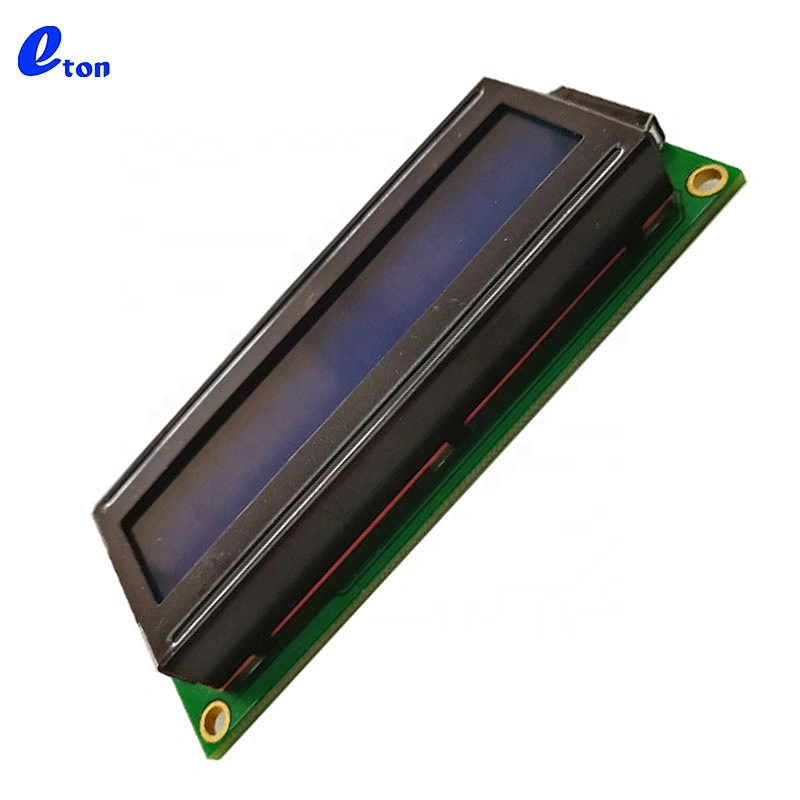

16x1 character single line 1601 custom lcd display module
16x1 character single line 1601 custom lcd display module
| Outline Size(mm) | 80.0(L)× 36.0(W) ×13(T)MAX |
| Lcd Type | STN, Y-G/BLACK, TRANSFLECTIVE/ POSITIVE |
| Display type | 16(characters) ×1(line) |
| View Area(mm) | 64.6×16.0 |
| Display Area(mm) | 60.8×6.0 |
| Dots size(mm) | 0.6×0.7 |
| Dots pitch(mm) | 0.66×0.76 |
| Character Size(mm) | 3.24×6.02 |
| Character Pitch(mm) | 3.84×6.72 |
| Controller & driver | S6A0069X01-C0CX |
| View Direction | 12 O’Clock |
| Interface mode | --- |
| VDD&VOP(Type) | 5.0 V &5 V |
| Backlight(Type) | Y-G and Blue |
| Operation Temp.(℃) | -20 to +70℃ |
| Storage Temp.(℃) | -30 to +80℃ |
16x1 character single line 1601 custom lcd display module
16x1 character single line 1601 custom lcd display module
16x1 character single line 1601 custom lcd display module
Package: Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton
Shipping : Shipping via DHL, UPS,TNT, FedEx Express, Air mail, and seamail
