Product Description

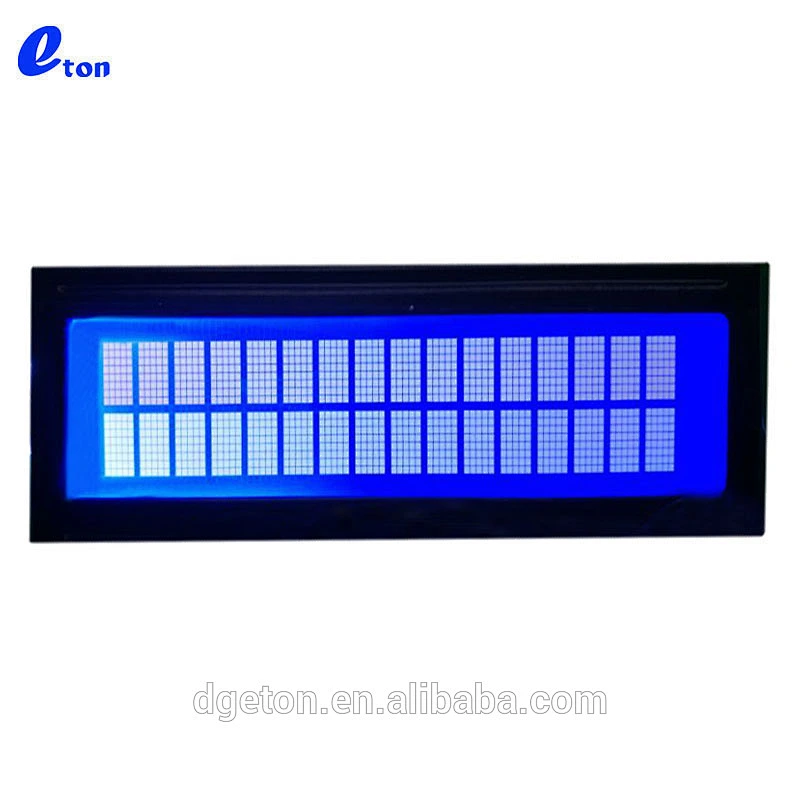

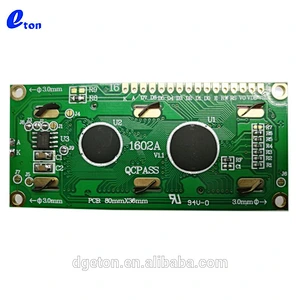

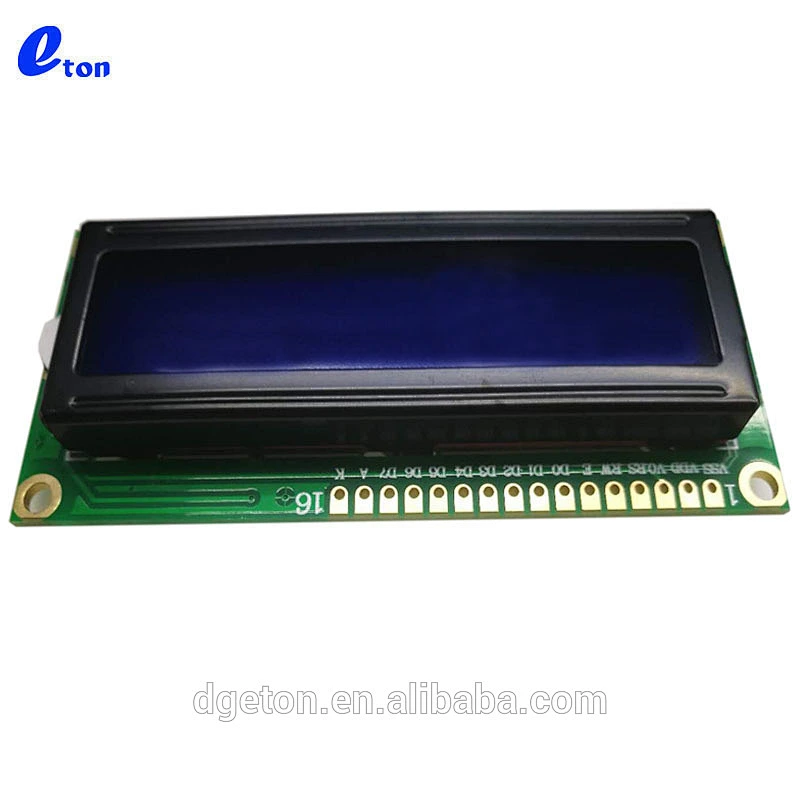

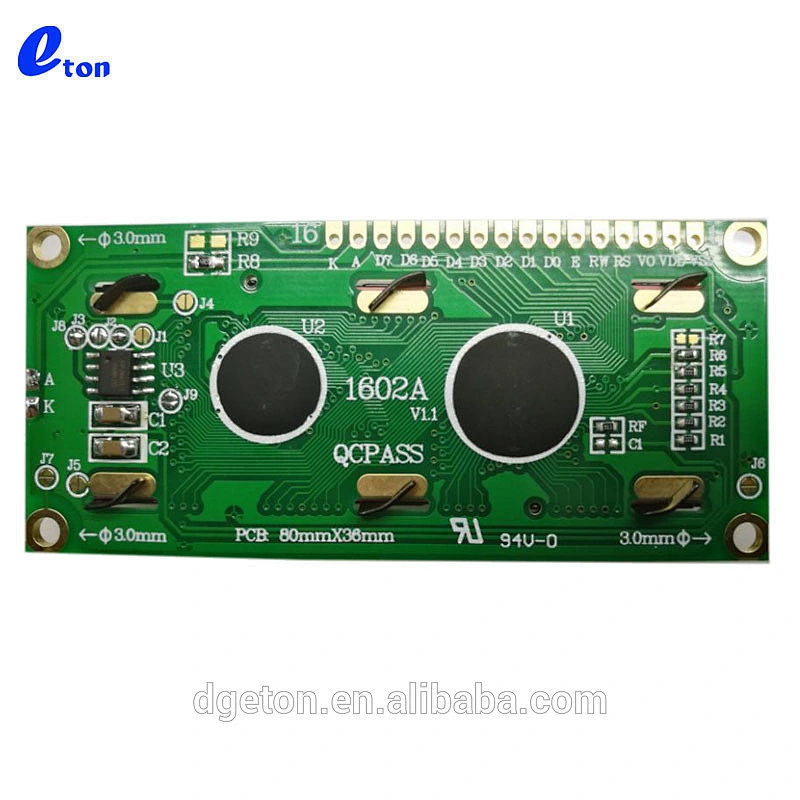

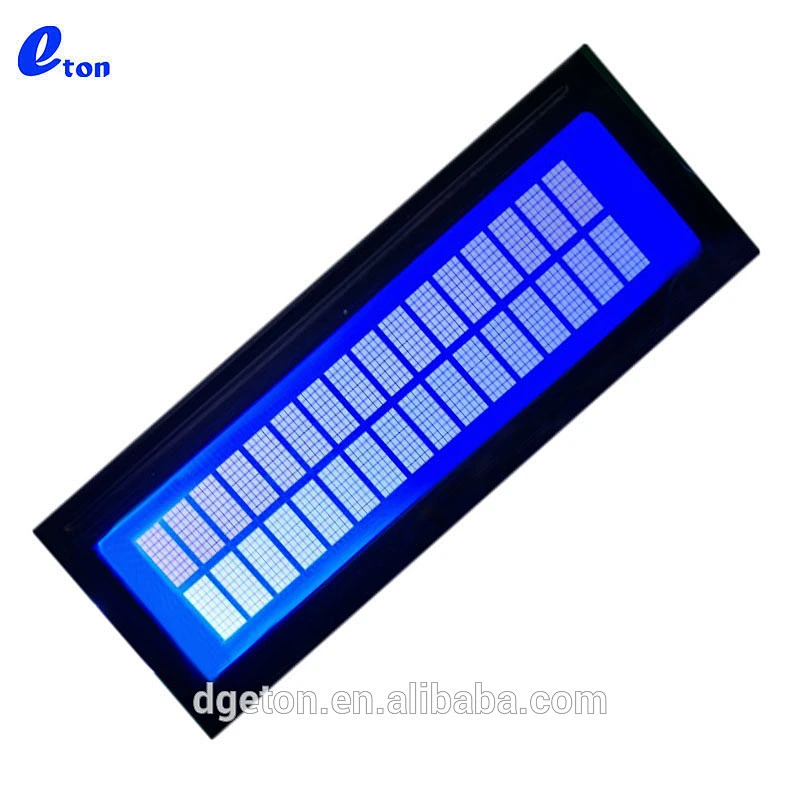

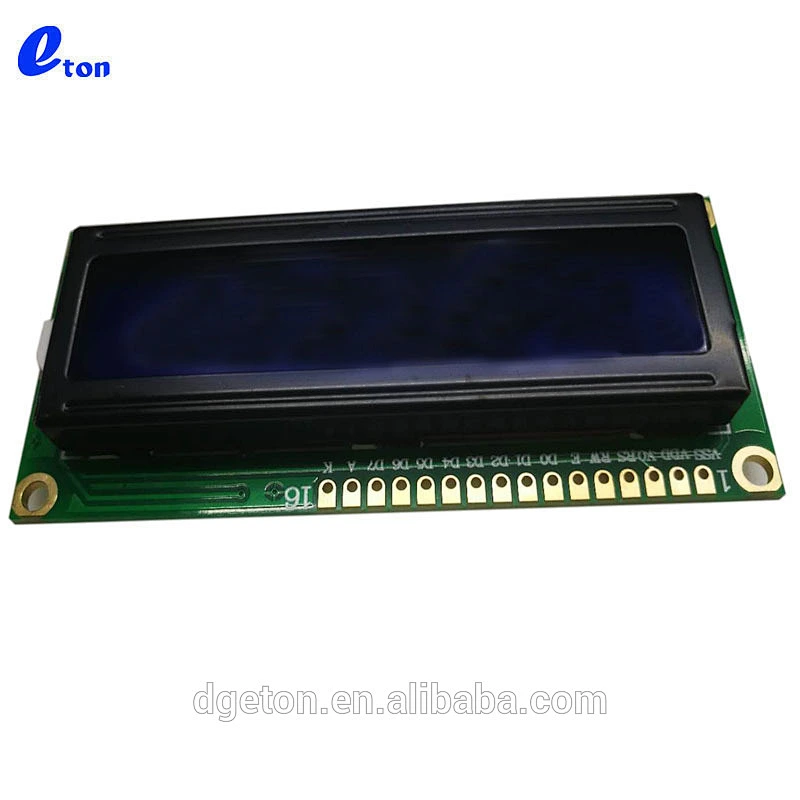

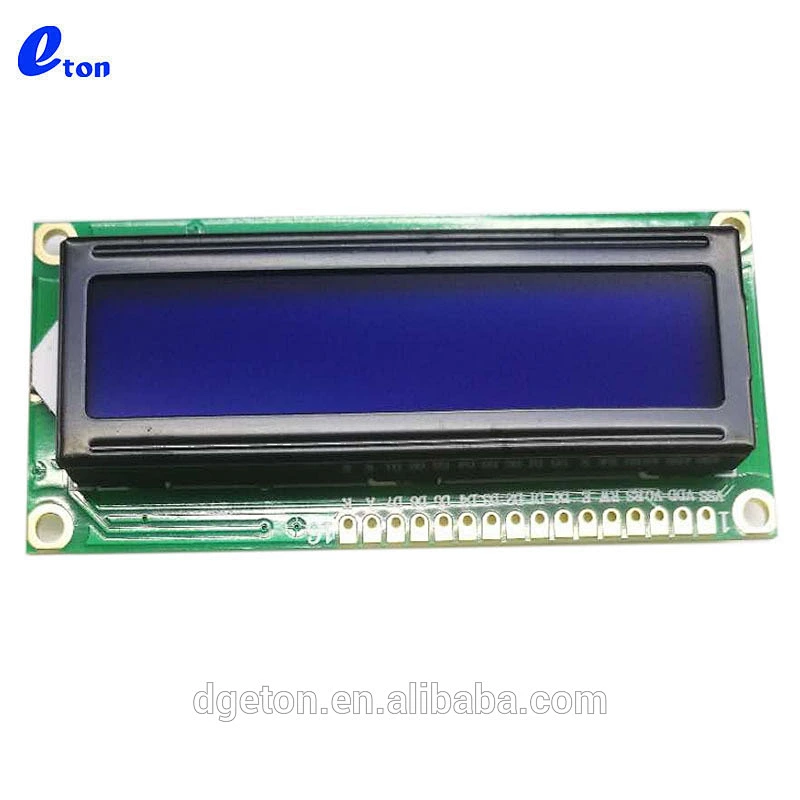

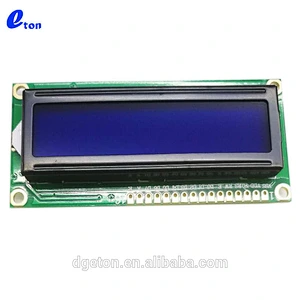

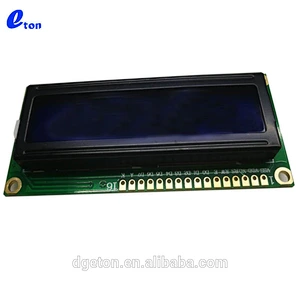

COB CHARACTER 2X16 LCD Display white backlight
| LCD Type | FSTN - Film Super-Twisted Nematic |
| Display Mode | Transmissive |
| Number of Characters | 32 |
| Display Format | 16 x 2 |
| Character Format | 5 x 8 Dots |
| Outline Dimension | 80mm x 36mm x 13.8mm |
| Viewing Area | 64.500mm L x 13.8mm W |
| Backlight | white Backlight |
| Voltage -Supply | 3.3V |
| Operating Temperature | -20°C ~ 70°C |
| Dots size | 0.47mm W x 0.67mm H |
| Interface | Parallel, 8-Bit, SPI |
| Text color | White |
| Background color | Black |
Product Range
1. LCD Type: TN, HTN, STN, FSTN, VA
2. Any digitals, icons, graphic can be customized and designed according to your requirement
3. Polarizer type: Transmissive, Transflective, Reflective
4. Connector Type: FPC, Metal Pins, Zebra, Heat-seal
5. Glass thickness: 1.1mm, 0.7mm, 0.55mm
6. Various Backlight color available
7. IC Mounting Method: COB,COG,TAB etc
Main Application:
Wire tester | Communications equipment |
Instrument & meter | Car audio-visual |
Industrial equipment | Home appliances |
Manipulator controller | Consumption electronics |
Medical Equipment | POS |
Electricity,Power Controller Device | Beauty Equipment, |
Semi auto analyzer | Medical Equipment |
ECG | Injection Machine |
| After-sales service: | 24 hours everyday |
| Quality gurantee: | 6 month |
| Delivery: | 7-15days for bulk order, 5days for sample |
1.Q: Are you manufactory or trade company?
A:We are professional manufactory, which specializes in TN, HTN, FSTN, STN monochrome LCD, LED backlights, LCD modules more than 6 years in Dongguan ! Our advanced full set equipments make sure good quality and competitive price!
2.Q: How can I get the samples?
A: Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect
3.Q: How long can I expect to get the sample?
A:Contour drawing: 2-3 days Sample time: 10-15 business days
4.Q:Will you offer free sample?
A: Yes, we usually provide 5-8pcs free samples, you just need to pay the tooling charge.
5.Q: Can you design the lcd in acccordance with our demand?
A:Sure.We will give you the best tooling charge.
6.Q:How to place orders ?
A:If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
1)Product information-Quantity,part number
2)Delivery time required.
3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if you have any in China.
7.Q:How long of mass production ?
A: 25-30 business days. It depends on different order quantities and part number.
