1602 LCD Datasheet 16x2 Character LCD Module
Product Description

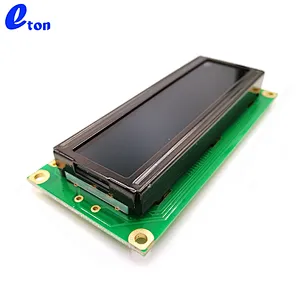

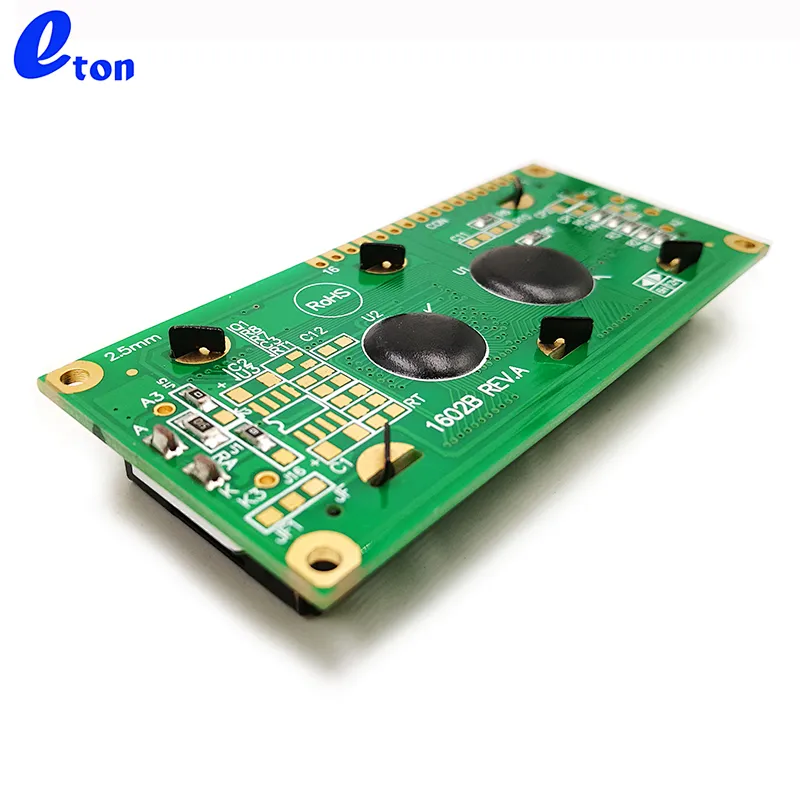

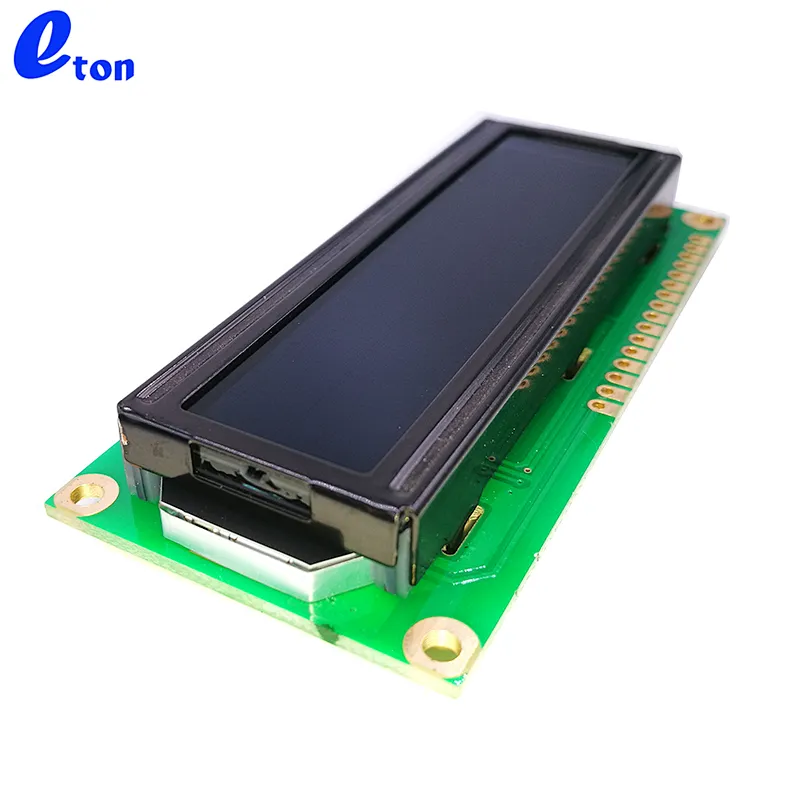

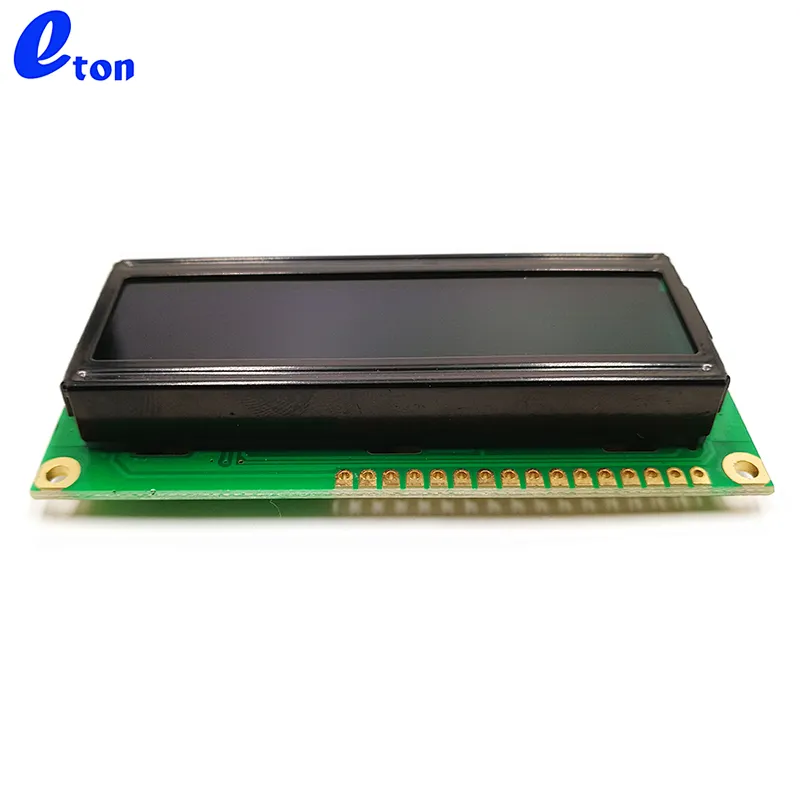

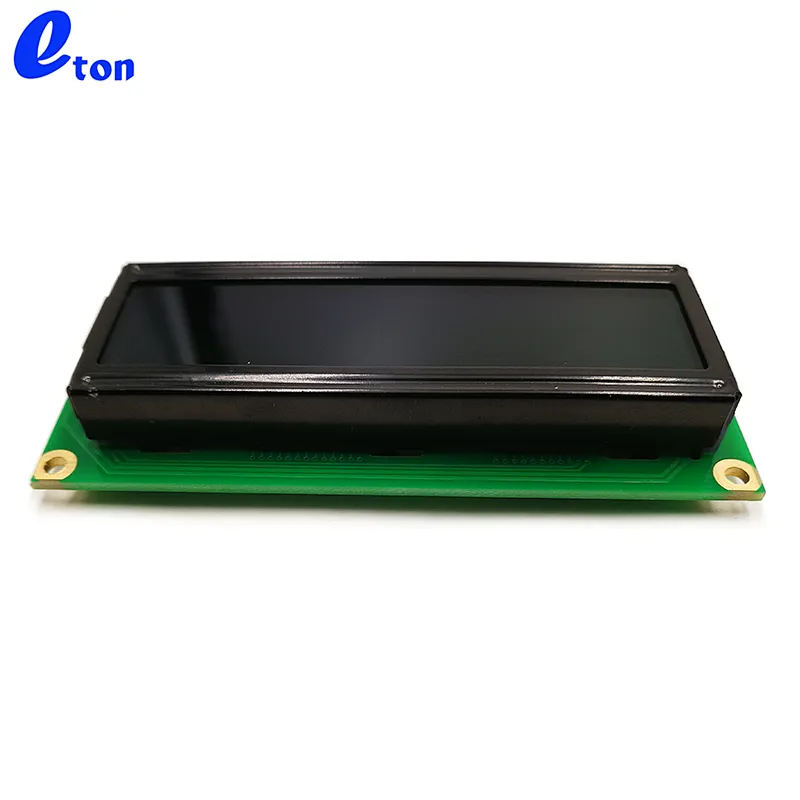

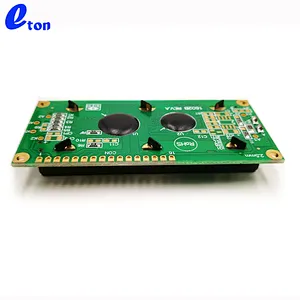

1602 LCD Datasheet 16x2 Character LCD Module
| Outline Size(mm) | 85.0 x 30.0 x 10.0 ? MAX |
| Lcd Type | STN Transflective / POSITIVE |
| Display Type | 16(characters) × 2(line) |
| View Area(mm) | 64.5×15.5 |
| Active area(mm) | 56.20 x 11.50 |
| Dots Size(mm) | 0.65×0.55 |
| Dots Pitch(mm) | 0.70×0.60 |
| Character Size(mm) | 5.55×2.95 |
| Character Pitch(mm) | 3.55 x 5.95 |
| Duty | 1/16 |
| View Direction | 6 o’clock or 12 o’clock |
| VDD&VOP(Type) | 4.7 V & 5.0 V |
| Backlight(Type) | None, YELLOW-GREEN or WHITE LED backlight |
| Operation Temp(℃) | 0 to +50 |
| Storage Temp(℃) | -10 to +60 |
