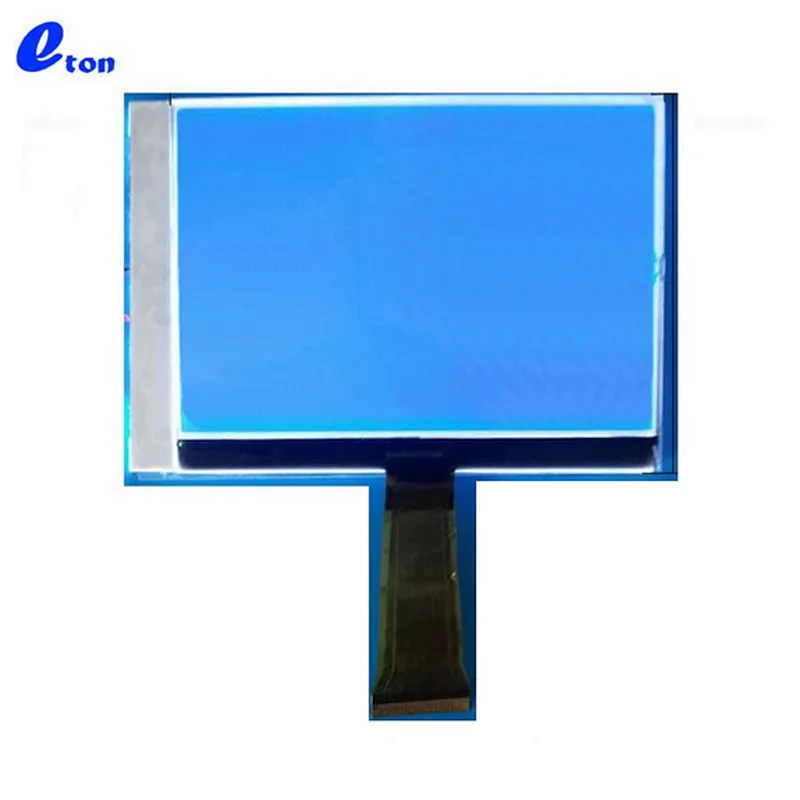

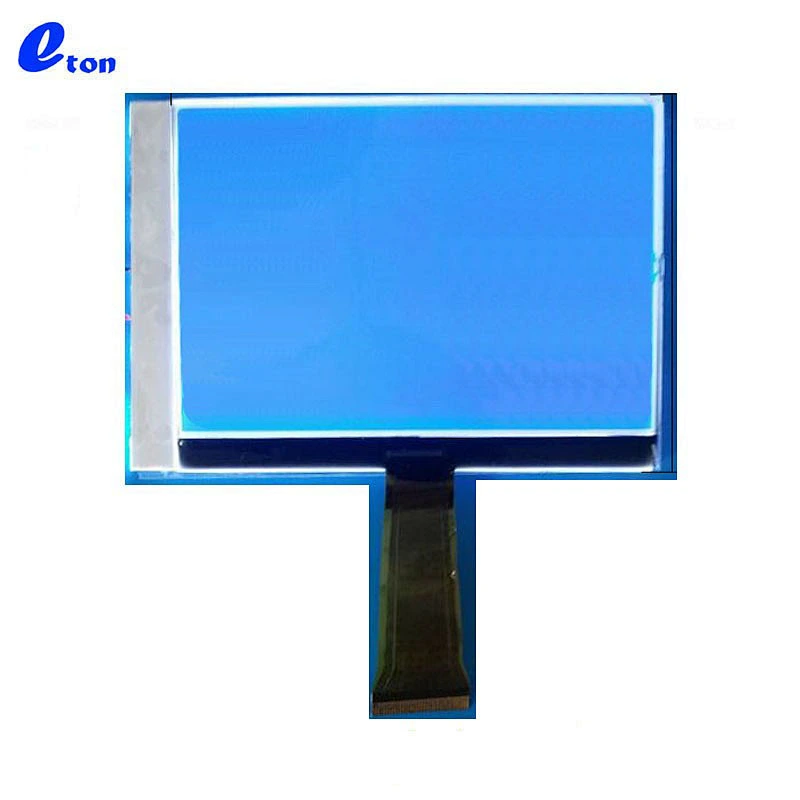

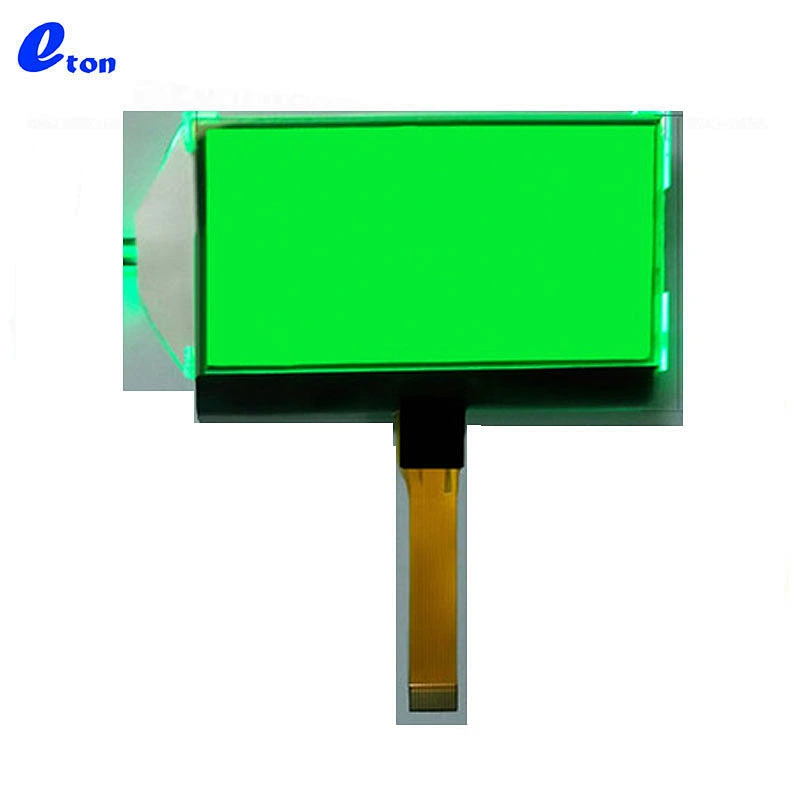

Custom size 128x64 dot matrix graphic lcd display
| LCD Type | STN,cheap custom size 128x64 dot matrix graphic lcd display in China |
| POLARIZER | TRANSFLECTIVE/positive/yellow-green |
| Dots | 128x64 |
| Module size | 89.7X49.8X11.8MM |
| Viewing Area | 66.8x35.5mm |
| Supply Voltage | 12V |
| Driver | SPLC501C |
| BACKLIGHT | yellow-green |
| View Angle | 6:00 |
| connecter | FPC |
| operating temperature | -20-70C |
| Storage temperature | -30-80C |
| Dots pitch | 0.50X0.50mm |
LCD Drawing
Interface
| PIN | 1 | 2 | 3 | 4 | 5 | 6 | 7-14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23-27 | 28 | 29 | 30 |
| Symbol | NC | /CS1 | /RES | A0 | /WR | /RD | D0-D7 | VDD | VSS | VOUT | CAP3N | CAP1P | CAP1N | CAP2N | CAP2P | V1-V5 | VR | C86 | P/S |
