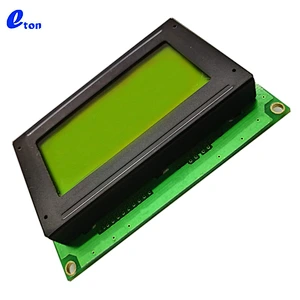

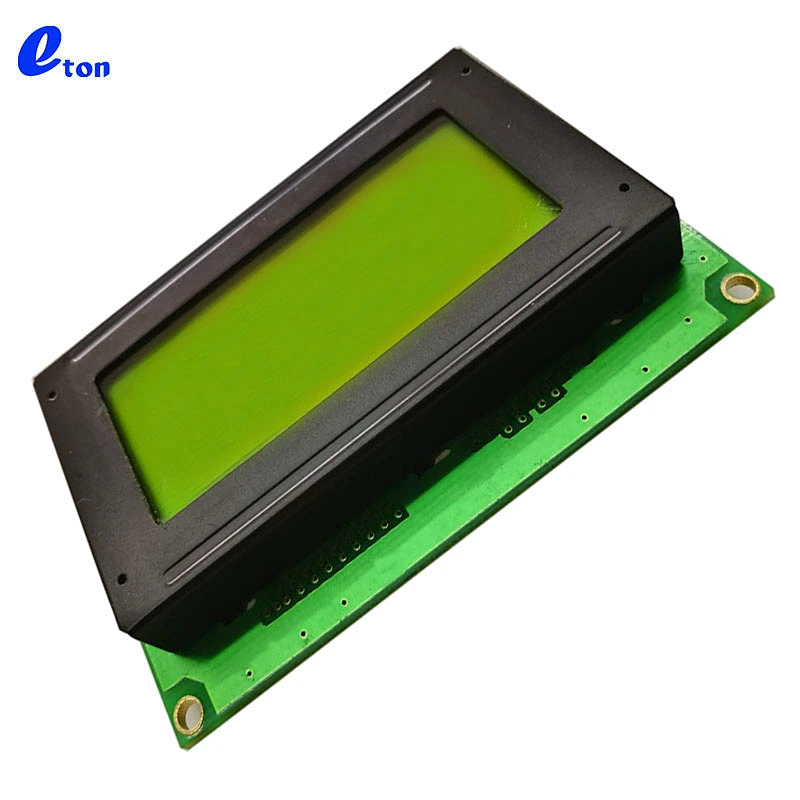

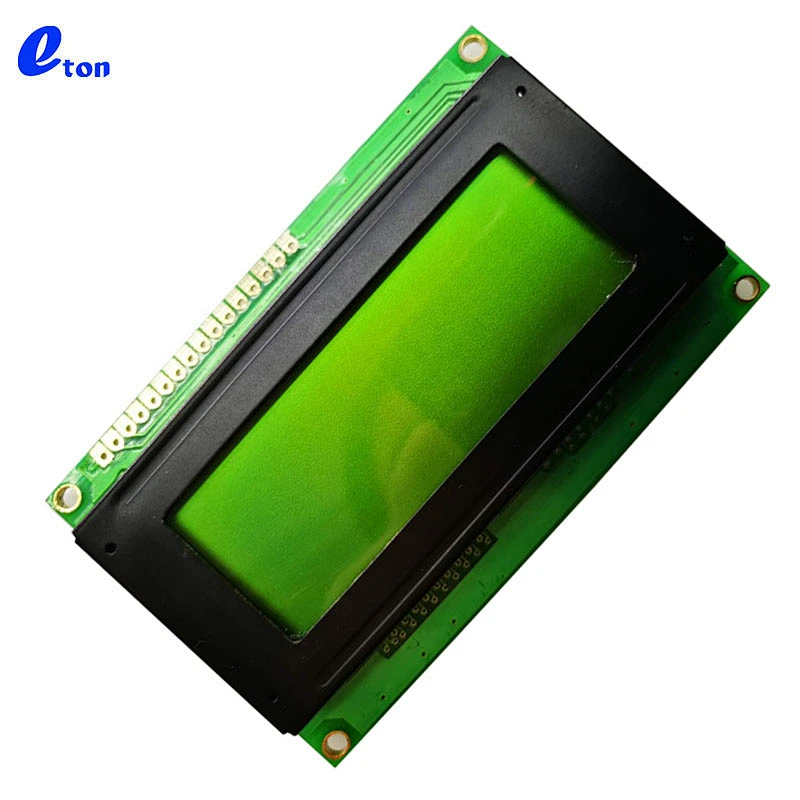

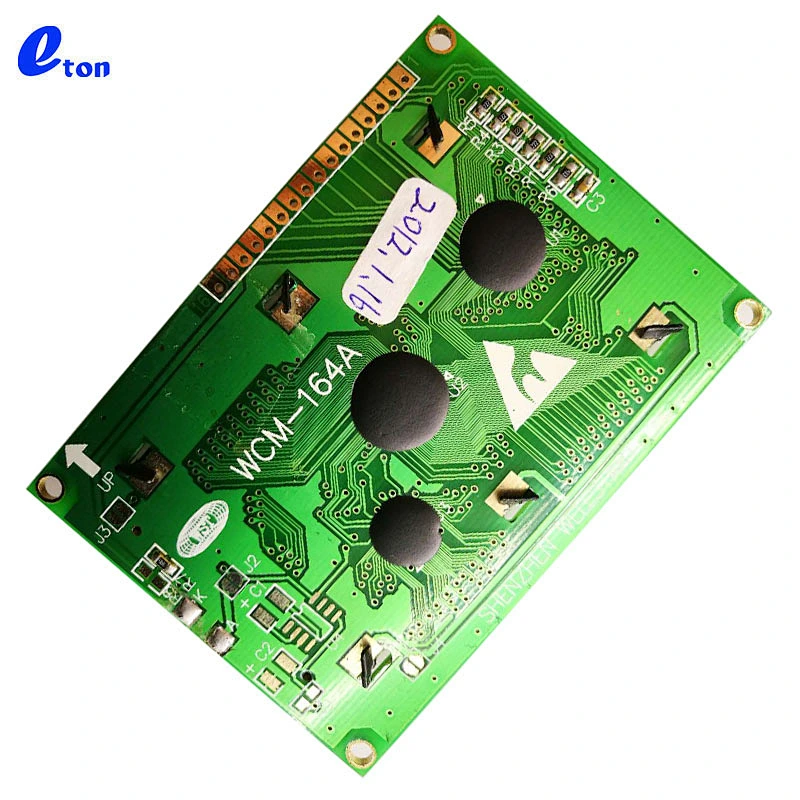

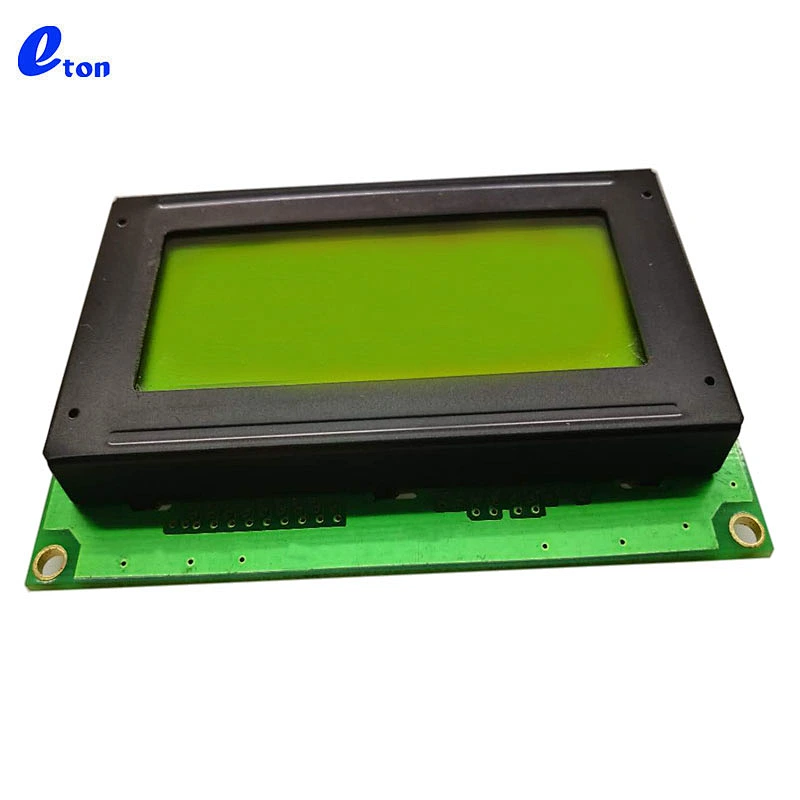

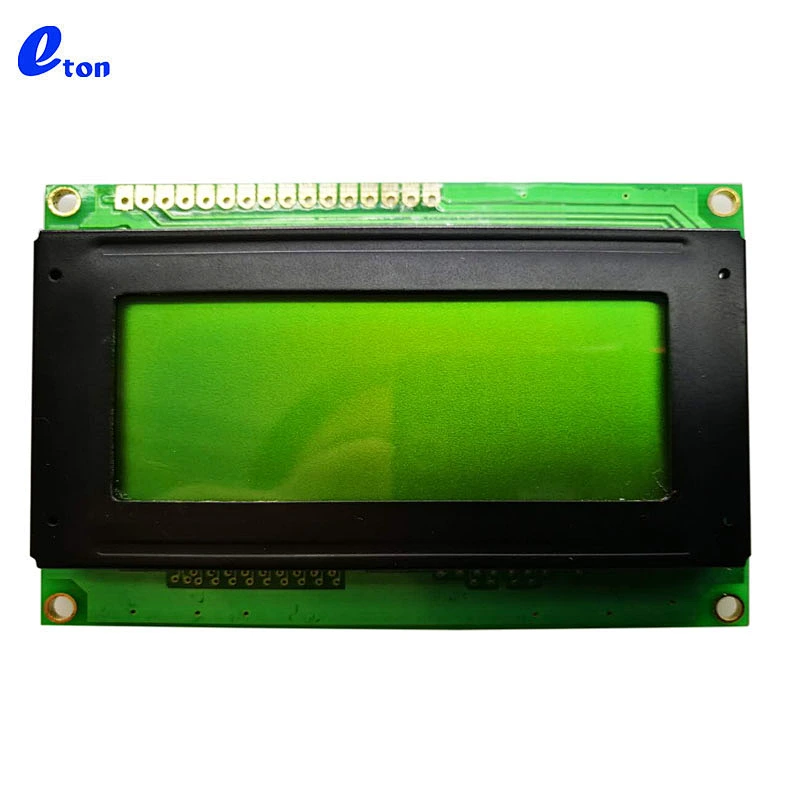

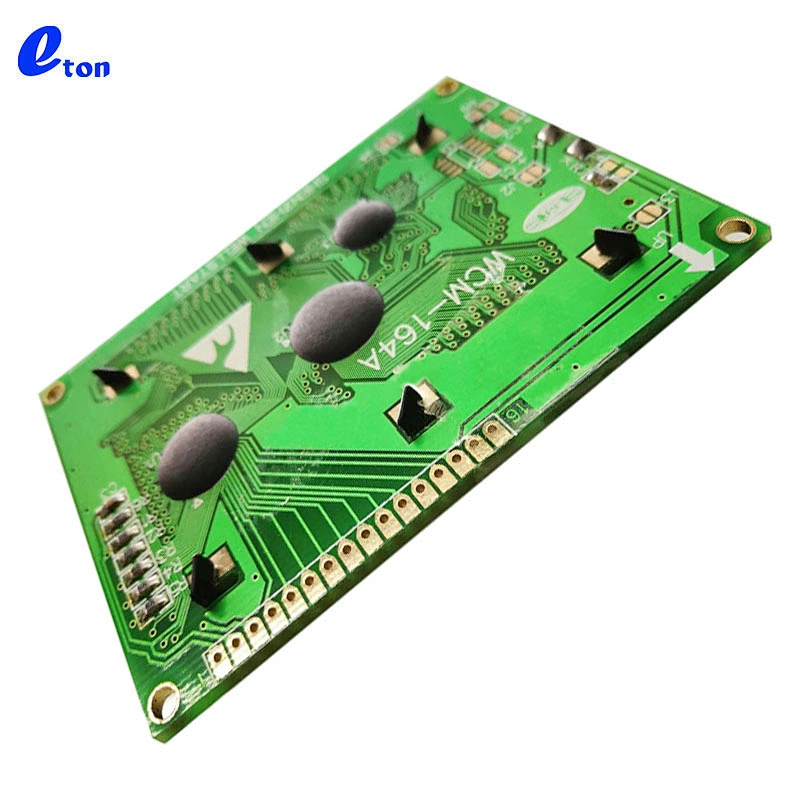

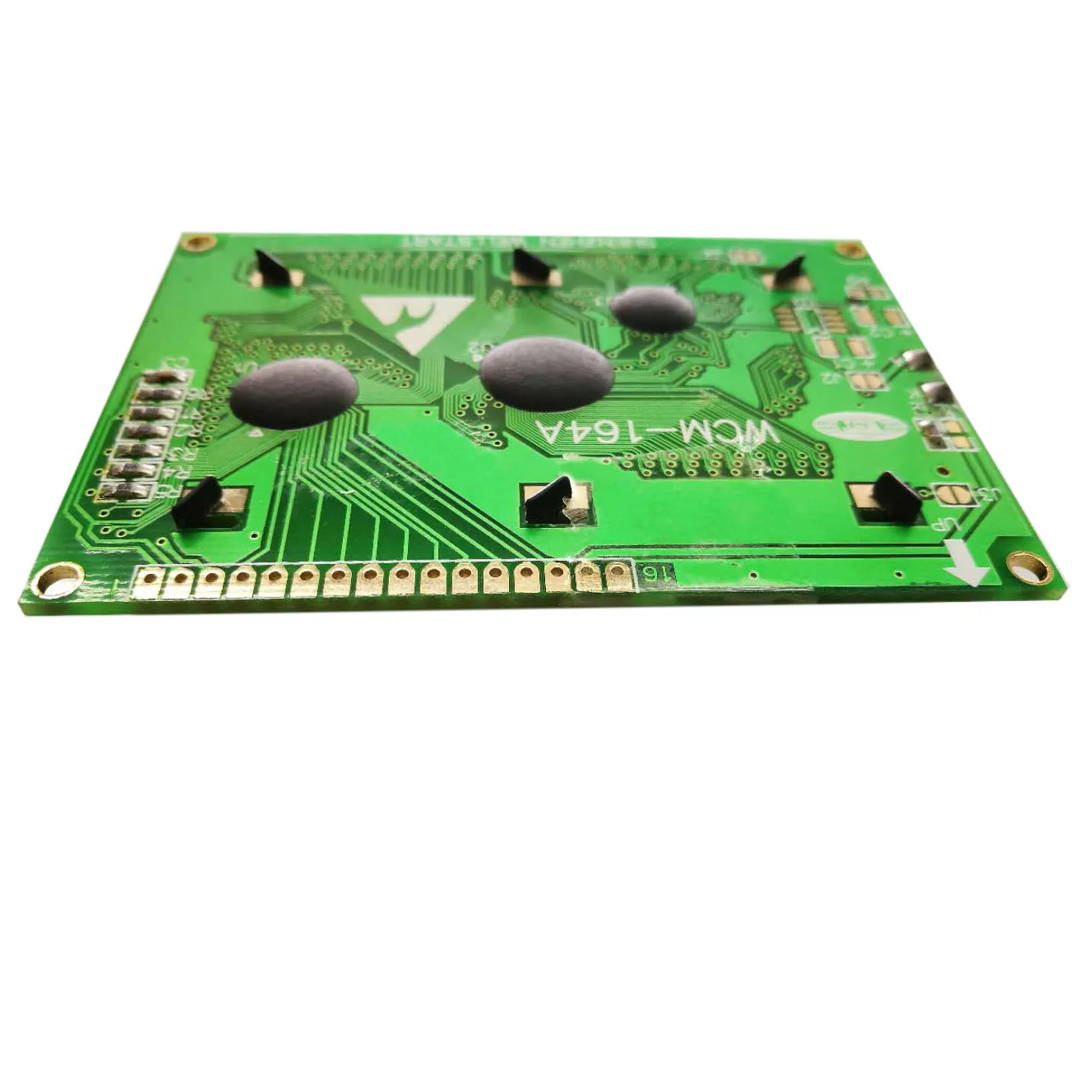

16x4 lcd display character 16x4 lcd module 1604 yellow-green lcd module
16x4 lcd display character 16x4 lcd module 1604 yellow-green lcd module
| Outline Size(mm) | 87.0(L)* 60.0(W)* 13.2(T)MAX |
| Lcd Type | STN, Y-G/Black, Transflective / POSITIVE |
| Display Type | 16(characters) × 4(line) |
| View Area(mm) | 61.7*25.2 |
| Display Area(mm) | 56.21*20.81 |
| Dots Size(mm) | 0.56*0.56 |
| Dots Pitch(mm) | 0.60*0.60 |
| Character Size(mm) | 4.76*2.96 |
| Character Pitch(mm) | 5.35*3.55 |
| Controlle & Driver | SPLC783X-01 |
| View Direction | 6 O’Clock |
| Interface Mode | --- |
| VDD&VOP(Type) | 5.0 V & 4.5 V |
| Backlight(Type) | YELLOW-GREEN |
| Operation Temp(℃) | 0 to +50 |
| Storage Temp(℃) | -10 to +60 |
16x4 lcd display character 16x4 lcd module 1604 yellow-green lcd module
16x4 lcd display character 16x4 lcd module 1604 yellow-green lcd module
16x4 lcd display character 16x4 lcd module 1604 yellow-green lcd module
Package: Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton
Shipping : Shipping via DHL, UPS,TNT, FedEx Express, Air mail, and seamail
Application
Ralated product
1.Q: Are you manufactory or trade company?
A:We are professional manufactory, which specializes in TN, HTN, FSTN, STN monochrome LCD, LED backlights, LCD modules more than 6 years in Dongguan ! Our advanced full set equipments make sure good quality and competitive price!
2.Q: How can I get the samples?
A: Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect
3.Q: How long can I expect to get the sample?
A:Contour drawing: 2-3 days Sample time: 10-15 business days
4.Q:Will you offer free sample?
A: Yes, we usually provide 5-8pcs free samples, you just need to pay the tooling charge.
6.Q: Can you design the lcd in acccordance with our demand?
A:Sure.We will give you the best tooling charge.
7.Q:How to place orders ?
A:If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
1)Product information-Quantity,part number
2)Delivery time required.
3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if you have any in China.
8.Q:How long of mass production ?
A: 25-30 business days. It depends on different order quantities and part number.
