1.Product Description

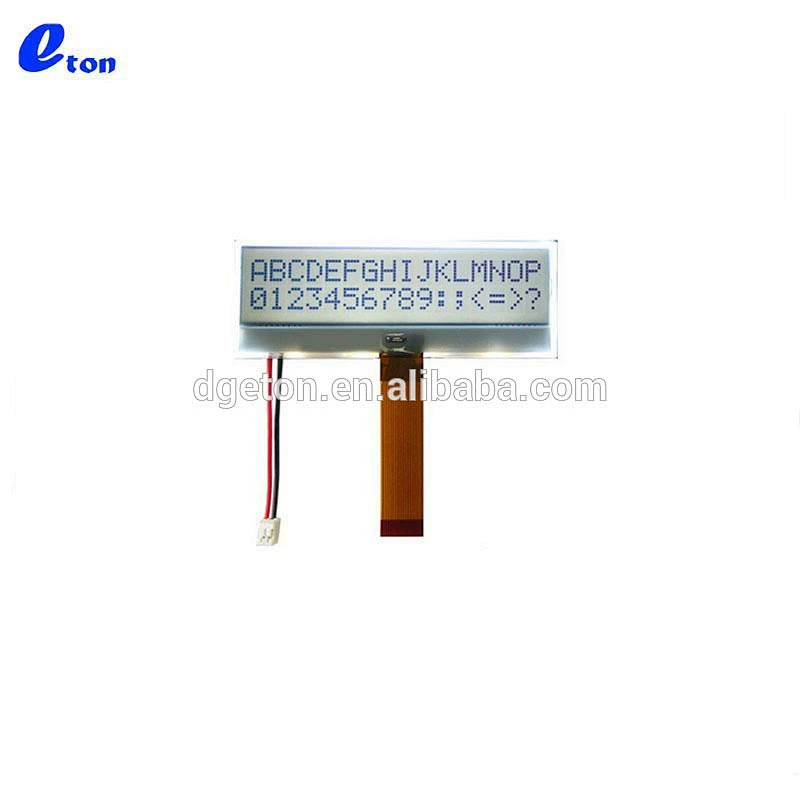

16X2 COG LCD DISPLAY FSTN BLACK CHARACTER AND WHITE LED BACKLIGHT
| Outsize | 85.9X30.8x5.5mm |
| LCD type | FSTN,TRANSFLECTIVE/POSITIVE |
| View Area | 80.1x18mm |
| Drive Method | 1/16duty, |
| Connector | FPC |
| View angle | 6:00 |
| Voltage | 3.3V |
| Operating temperature | -20-70c |
| Storage temperature | -30-80c |
| Driver | ST7032 |

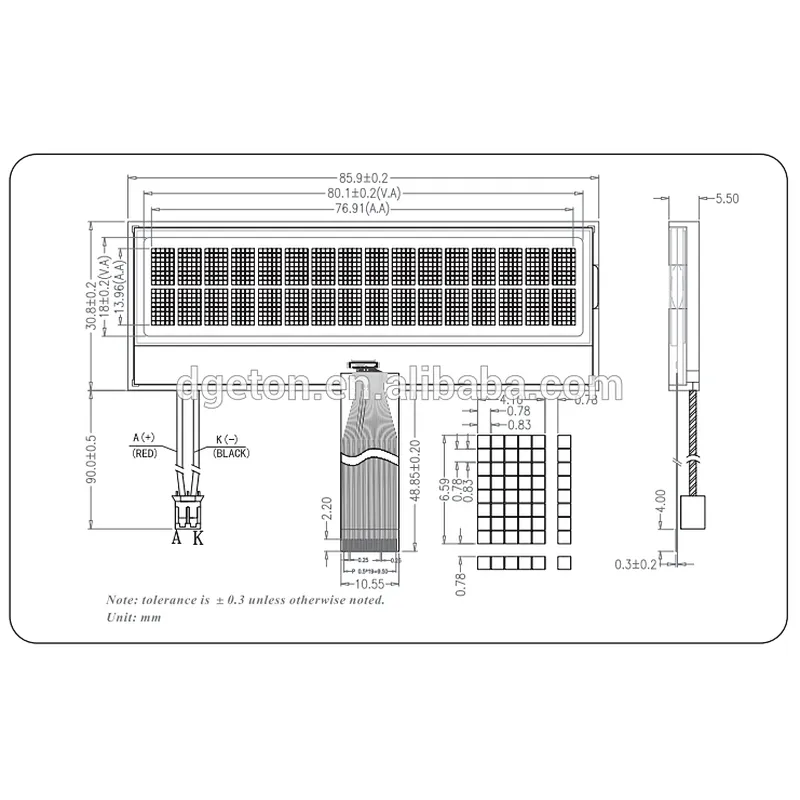

LCD Drawing
PIN Assignment Interface of Connecter
LCD Colour for Your Choice
2.Packaging & Shipping
3.Our services
We are professional LCD manufacture and have 6 years experience on this .Our factory has strong research and design ability. The LCD and LCD module produced capacity included as below:
| LCD Thickness | 1.7mm, 2.0mm,2.8mm |
| LCD Type | TN, HTN, STN, FSTN,VA |
| Polarizer | Reflective , Transmissive,Transflective, Transparent |
| Range of operating temperature | -40C-90C |
| Connector PIN | Metal Pin, Heat seal, FPC ,Zebra, FFC |
| Voltage | 2V-5V |
| Driving | 1/1 duty to 1/240 duty |
4.Company Information
5.FAQ
1.Q: Are you manufactory or trade company?
A:We are professional manufactory, which specializes in TN, HTN, FSTN, STN monochrome LCD, LED backlights, LCD modules more than 6 years in Dongguan ! Our advanced full set equipments make sure good quality and competitive price!
2.Q: How can I get the samples?
A: Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect
3.Q: How long can I expect to get the sample?
A:Contour drawing: 2-3 days Sample time: 10-15 business days
4.Q:Will you offer free sample?
A: Yes, we usually provide 5-8pcs free samples, you just need to pay the tooling charge.
6.Q: Can you design the lcd in acccordance with our demand?
A:Sure.We will give you the best tooling charge.
7.Q:How to place orders ?
A:If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
1)Product information-Quantity,part number
2)Delivery time required.
3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if you have any in China.
8.Q:How long of mass production ?
A: 25-30 business days. It depends on different order quantities and part number.
6. Our Clients
7.Potential Applications
1.Portable test equipment
2.Measuring Device
3.Diagnostics device
4.Automotive display
5.Medical equipment
6.Electric ,water, gas meters, energy meter
7.Marine equipment
8.Telecom products
Application On Product Picture
