PRODUCT DISCRIPTION

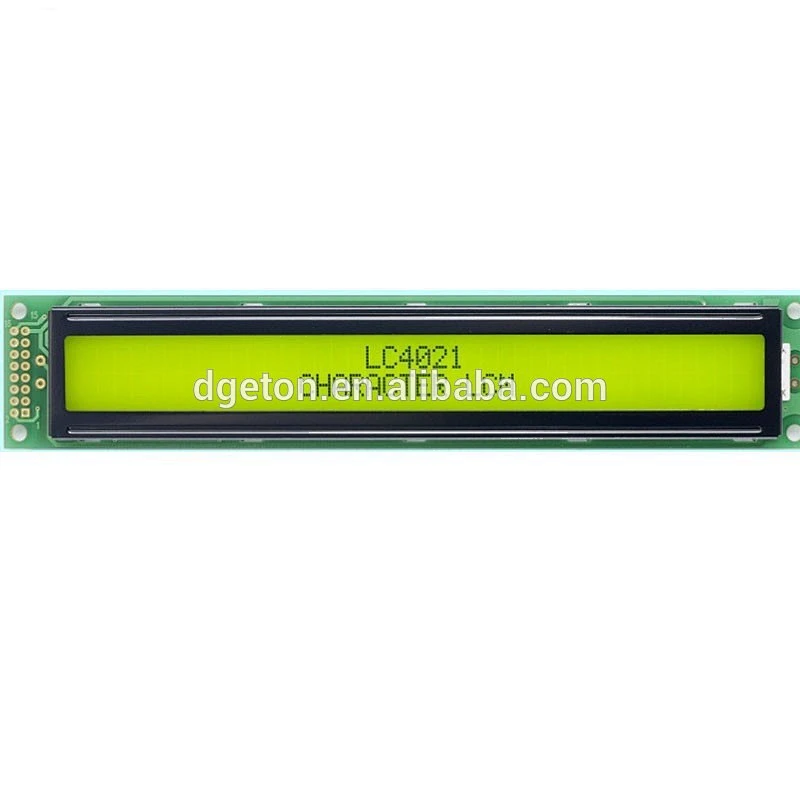

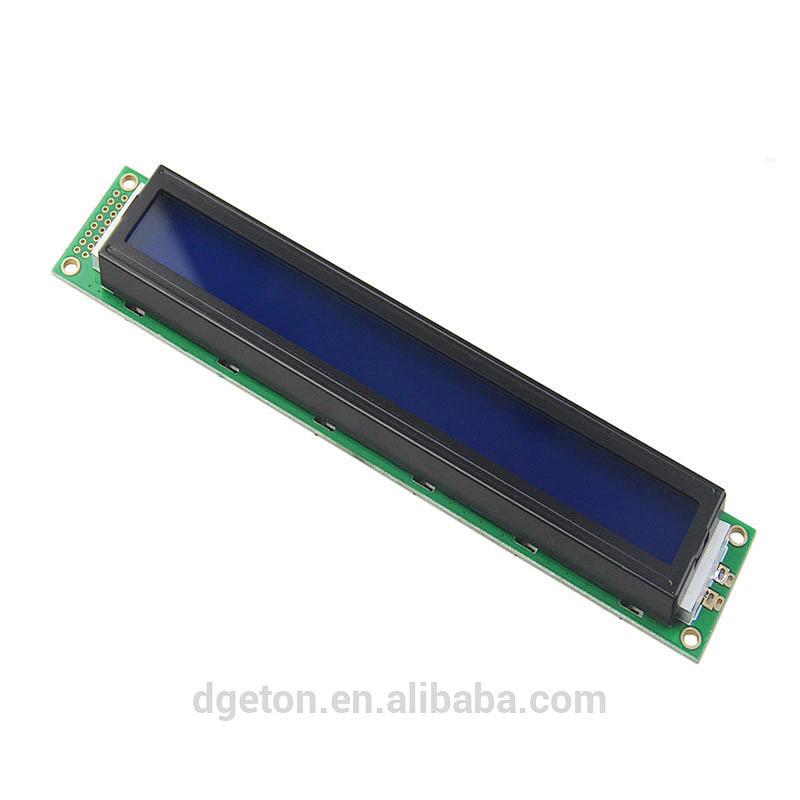

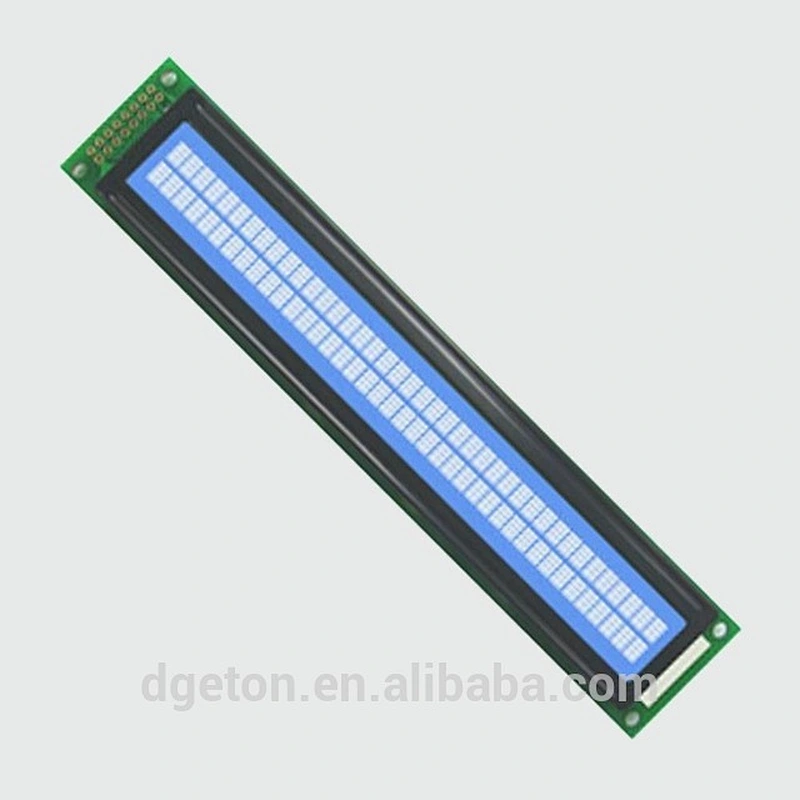

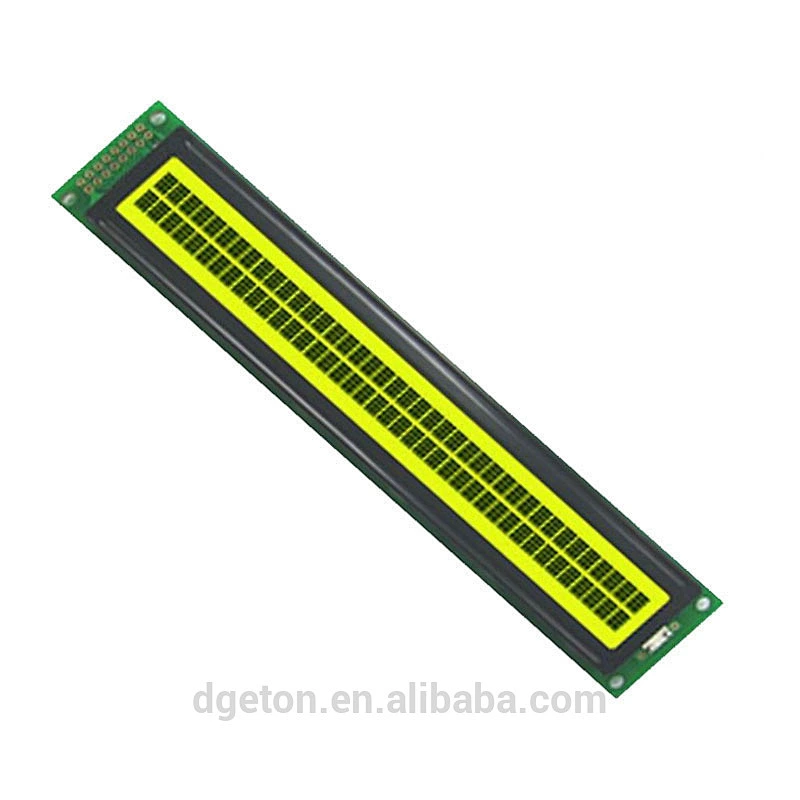

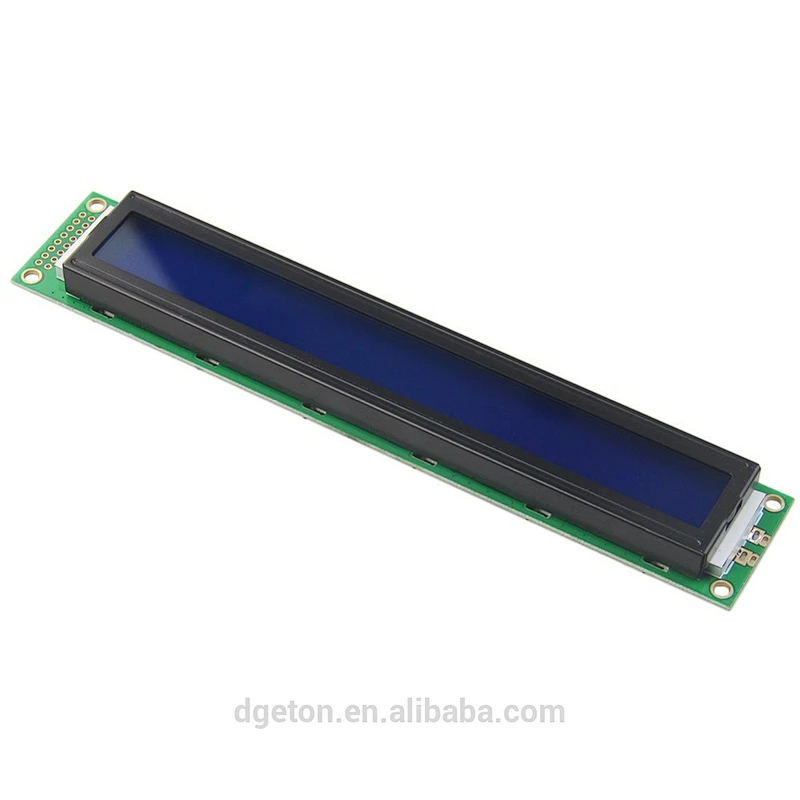

monochrome 4002 character LCD display module
| LCD type | STN |
| Polarizer type | Transflective/positive |
| Out line size | 182x33.5x14.5mm |
| Display Type | 40characters x2lines |
| View angle | 6:00 |
| operating temperature | -20-70c |
| storage temperature | -20-80c |
| Voltage | 5.0V |
| driver | S6A0069 |
| backlight | yellow-green |
LCD Drawing
Interface
| PIN | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | ||
| SYMBOL | VSS | VDD | V0 | RS | R/W | E | DB0 | DB1 | DB2 | DB3 | DB4 | DB5 | DB6 | DB7 | LEDA | LEDK |
monochrome 4002 character LCD display module
mo
| Packaging : | Packed with Anti-static transparent plastic bags, Anti-static foam boxes and paper boxes. |
| Shipping : | Shipping via DHL, UPS,TNT, FedEx Express, Air mail, and seamail. |
nochrome 4002 character LCD display module
monochrome 4002 character LCD display module
| After-sales service: | 24 hours everyday |
| Quality gurantee: | 6 month |
| Delivery: | 7-15days for bulk order, 5days for sample |
We are professional LCD&LCM manufacture and have 6 years experience on this .Our factory has strong research and design ability. The LCD and LCD module produced capacity included as below:
| LCD Thickness | 1.7mm, 2.0mm,2.8mm |
| LCD Display Type | COB ,COG ,TAB |
| Polarizer | Reflective , Transmissive,Transflective, Transparent |
| Range of operating temperature | -40C-90C |
| Connector PIN | Metal Pin, Heat seal, FPC ,Zebra, FFC |
| LCD color | Grey ,YELLOW-Green, Green, Black |
| Driving | 1/1 duty to 1/240 duty |
FAQ
1.Q: Are you manufactory or trade company?
A:We are professional manufactory, which specializes in TN, HTN, FSTN, STN monochrome LCD, LED backlights, LCD modules more than 6 years in Dongguan ! Our advanced full set equipments make sure good quality and competitive price!
2.Q: How can I get the samples?
A: Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect
3.Q: How long can I expect to get the sample?
A:Contour drawing: 2-3 days Sample time: 10-15 business days
4.Q:Will you offer free sample?
A: Yes, we usually provide 5-8pcs free samples, you just need to pay the tooling charge.
6.Q: Can you design the lcd in acccordance with our demand?
A:Sure.We will give you the best tooling charge.
7.Q:How to place orders ?
A:If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
1)Product information-Quantity,part number
2)Delivery time required.
3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if you have any in China.
8.Q:How long of mass production ?
A: 25-30 business days. It depends on different order quantities and part number.
