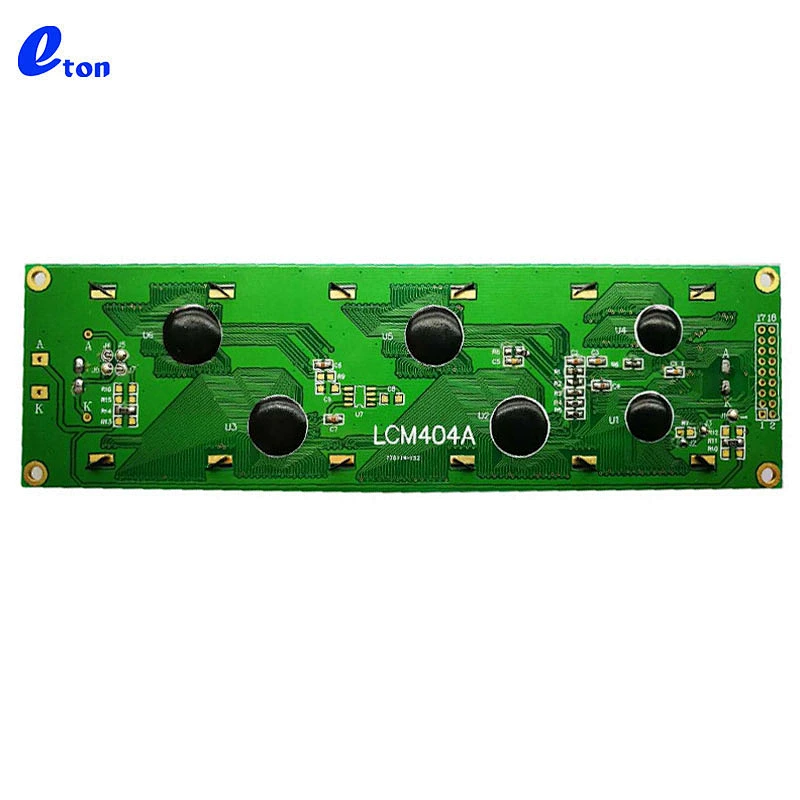

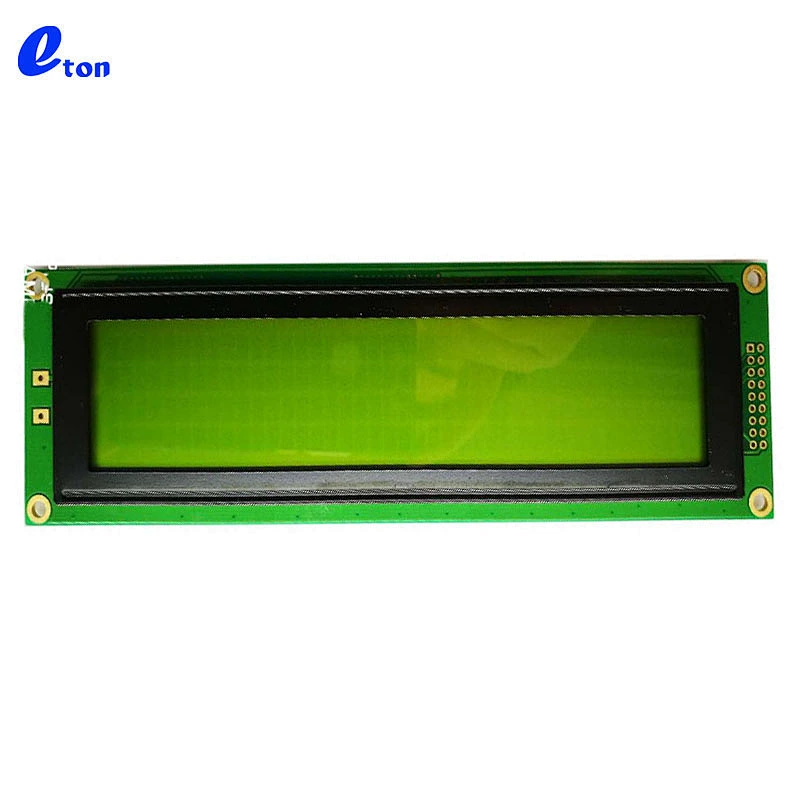

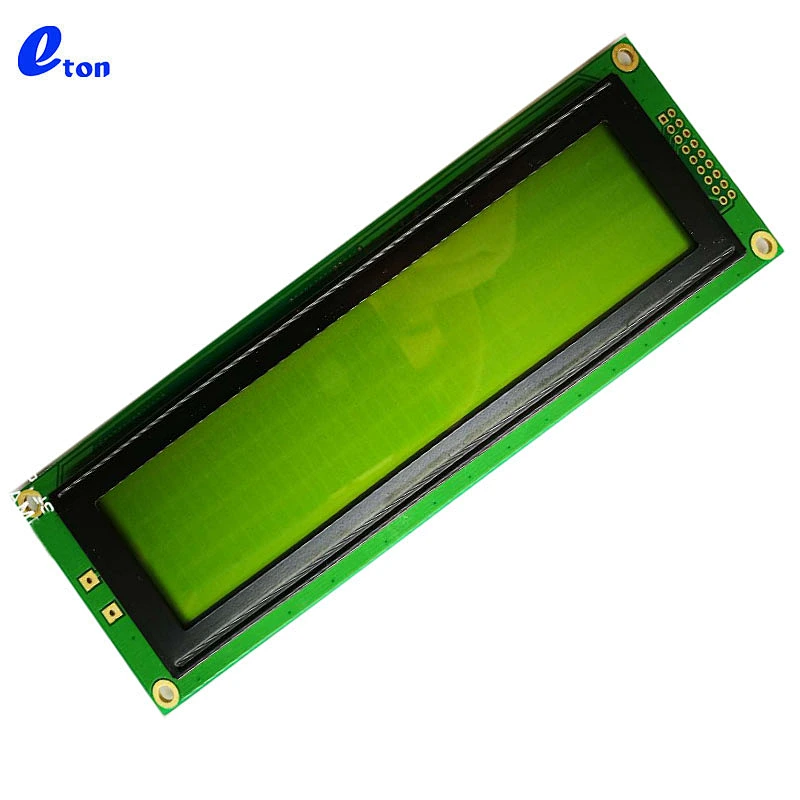

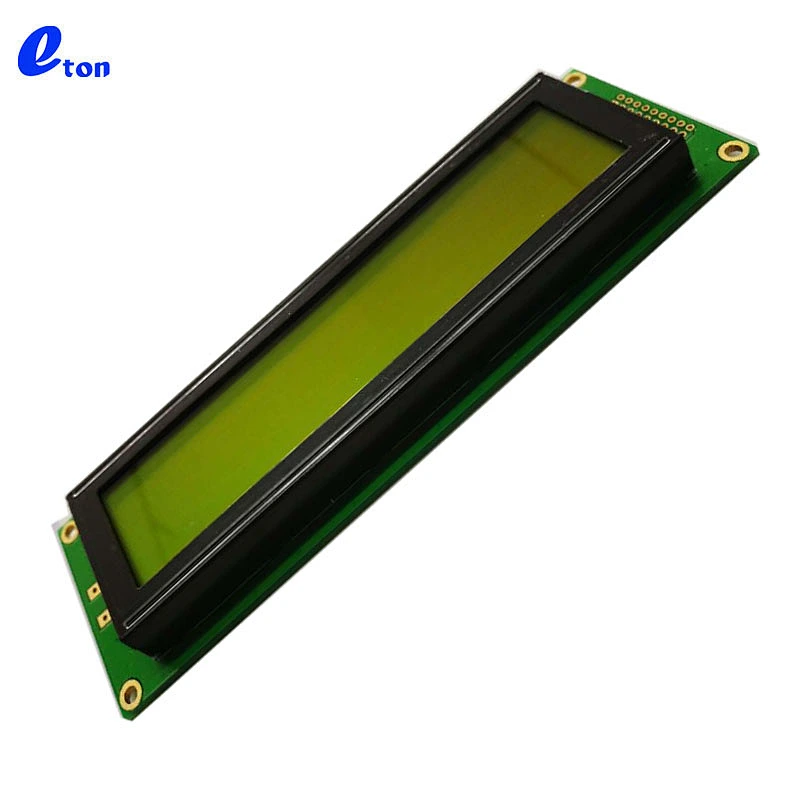

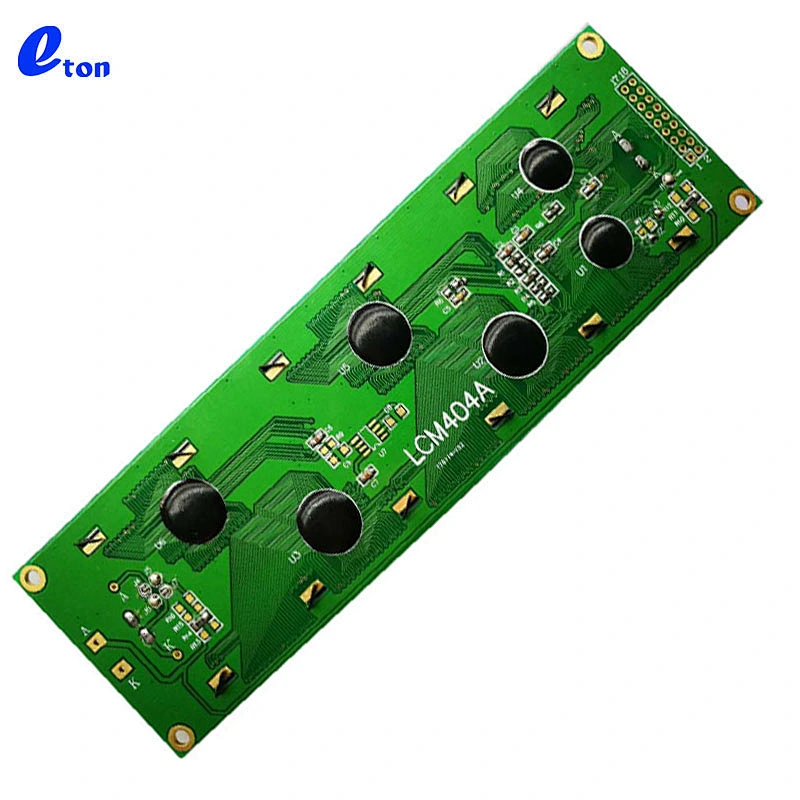

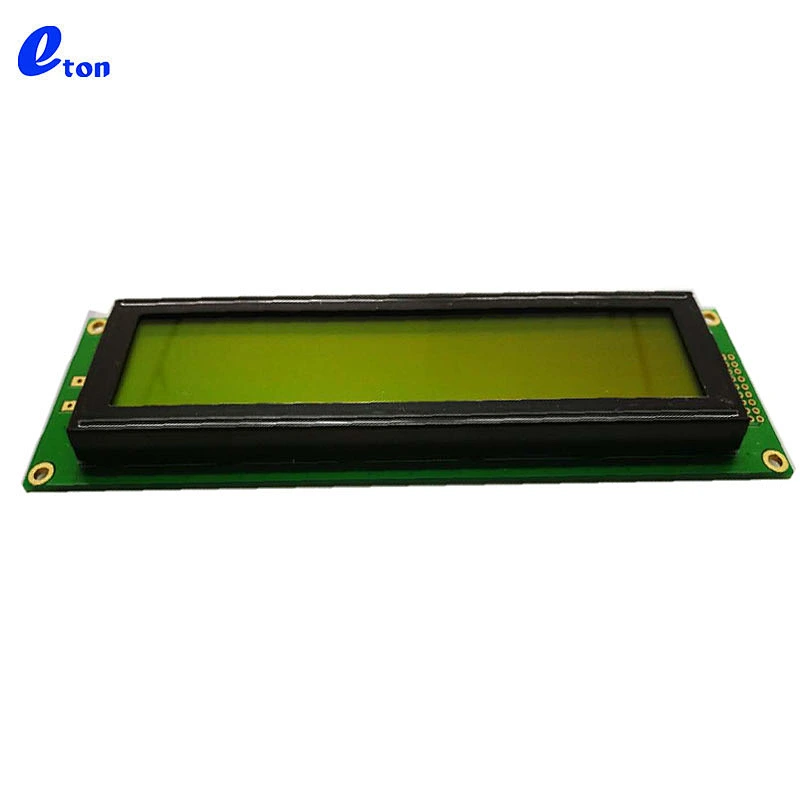

40x2 Electronic components LCD Display Module
40x2 Electronic components LCD Display Module
| Lcd Type | STN, Y-G/Backlight, TRANSFLECTIVE/ POSITIVE |
| Display type | 40(characters) ×4(line) |
| View Area(mm) | 148.0x30.3 |
| Active Area(mm) | 140.45x23.16 |
| Dots size(mm) | 05x0.55 |
| Dots pitch(mm) | 0.57x0.62 |
| Character Size(mm) | 2.78x4.89 |
| Character Pitch(mm) | 3.53x6.09 |
| View Direction | 6 O’Clock or 12 O'clock |
| Interface mode | --- |
| Backlight(Type) | Y-G |
| Operation Temp.(℃) | 0 to +50℃ |
| Storage Temp.(℃) | -10 to +60℃ |
16x1 LCD Alphanumeric Module STN LCD Display
16x1 LCD Alphanumeric Module STN LCD Display
16x1 LCD Alphanumeric Module STN LCD Display
Package: Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton
Shipping : Shipping via DHL, UPS,TNT, FedEx Express, Air mail, and seamail
Application
Ralated product
1.Q: Are you manufactory or trade company?
A:We are professional manufactory, which specializes in TN, HTN, FSTN, STN monochrome LCD, LED backlights, LCD modules more than 6 years in Dongguan ! Our advanced full set equipments make sure good quality and competitive price!
2.Q: How can I get the samples?
A: Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect
3.Q: How long can I expect to get the sample?
A:Contour drawing: 2-3 days Sample time: 10-15 business days
4.Q:Will you offer free sample?
A: Yes, we usually provide 5-8pcs free samples, you just need to pay the tooling charge.
6.Q: Can you design the lcd in acccordance with our demand?
A:Sure.We will give you the best tooling charge.
7.Q:How to place orders ?
A:If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
1)Product information-Quantity,part number
2)Delivery time required.
3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if you have any in China.
8.Q:How long of mass production ?
A: 25-30 business days. It depends on different order quantities and part number.
