Product Description

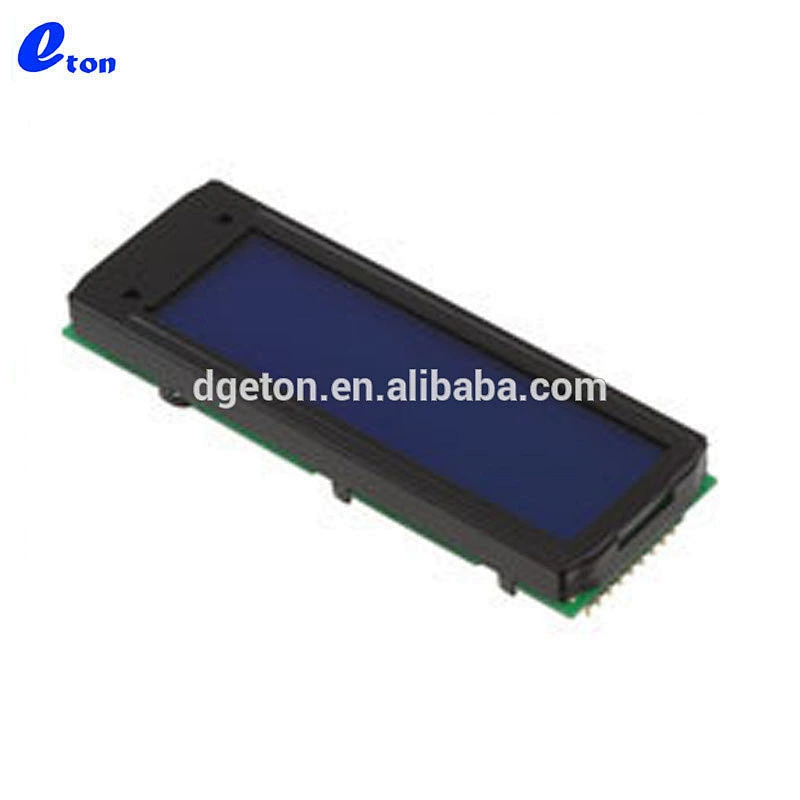

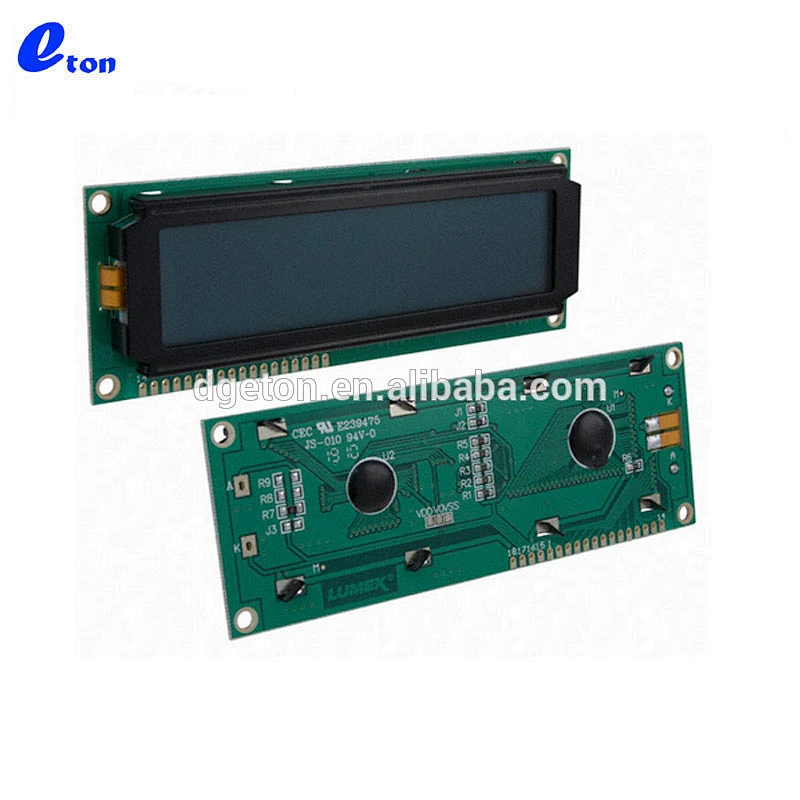

COB character 16x4 lcd display module , outline size 87*60*13.5 mm
| LCD Type | STNPOSITIVE |
| LCD Structure | COB |
| Dot Format | 16 x 4 |
| Outline dimension | 87.0 x 60.0 x 10.0/13.5 |
| Display area | 62.0 x 26.0 |
| Character Size | 2.95 x 4.75 |
| Drive voltage | 5.0V |
| Backlight | YG LED |
| Driver IC | SPLC780D1 |
| Operating temperature | - 20 C to +70C degree |
| Storage temperature | -30 C to +80C degree |
Product Range
1. LCD Type: TN, HTN, STN, FSTN, VA
2. Any digitals, icons, graphic can be customized and designed according to your requirement
3. Polarizer type: Transmissive, Transflective, Reflective
4. Connector Type: FPC, Metal Pins, Zebra, Heat-seal
5. Glass thickness: 1.1mm, 0.7mm, 0.55mm
6. Various Backlight color available
7. IC Mounting Method: COB,COG,TAB etc
Main Application:
Wire tester | Communications equipment |
Instrument & meter | Car audio-visual |
Industrial equipment | Home appliances |
Manipulator controller | Consumption electronics |
Medical Equipment | POS |
Electricity,Power Controller Device | Beauty Equipment, |
Semi auto analyzer | Medical Equipment |
ECG | Injection Machine |
Packaging & Shipping
| Package: | Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton |
| Shipping : | Shipping via DHL, UPS,TNT, FedEx Express, Air mail, and seamail |
Company Information
| Established date : | 12,2008 |
| Productivity : | 5000pcs per week |
| Certificate: | SGS |
| ROHS | |
| REACH | |
| Our aim | Provide Top Level Customer Service. Your satisfaction is our first priority. |
| Product range : | LCD,TN LCD Panel,STN LCD,COG LCD Module,COB LCD Module |
| Main market : | USA , Pakistan ,India,Europe ,Africa |
FAQ
1.Q: Are you manufactory or trade company?
A:We are professional manufactory, which specializes in TN, HTN, FSTN, STN monochrome LCD, LED backlights, LCD modules more than 6 years in Dongguan ! Our advanced full set equipments make sure good quality and competitive price!
2.Q: How can I get the samples?
A: Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect
3.Q: How long can I expect to get the sample?
A:Contour drawing: 2-3 days Sample time: 10-15 business days
4.Q:Will you offer free sample?
A: Yes, we usually provide 5-8pcs free samples, you just need to pay the tooling charge.
6.Q: Can you design the lcd in acccordance with our demand?
A:Sure.We will give you the best tooling charge.
7.Q:How to place orders ?
A:If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
1)Product information-Quantity,part number
2)Delivery time required.
3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if you have any in China.
8.Q:How long of mass production ?
A: 25-30 business days. It depends on different order quantities and part number.
