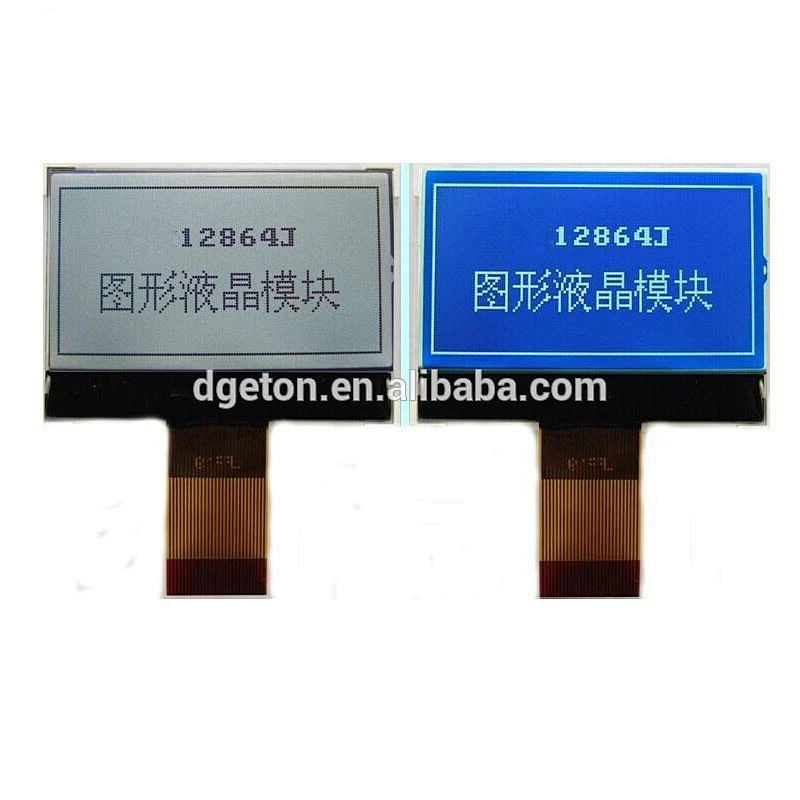

12864 COG LCD for handhold equipment
Product Description
12864 COG LCD for handhold equipment
| LCD Type | STN, |
| POLARIZER | TRANSFLECTIVE/positive/negative/ |
| Dots | 128x64 |
| Module size | 51x38x8.5mm |
| Viewing Area | 46x26mm |
| Supply Voltage | 14.5V |
| Driver | ST7565P |
| BACKLIGHT | YELLOW-GREEN/WHITE |
| View Angle | 6:00 |
| connecter | FPC |
| operating temperature | -20-70C |
| Storage temperature | -30-80C |
| Dots pitch | 0.345X0.36mm |
LCD Drawing
Interface
| PIN | 1 | 2 | 3 | 4 | 5 | 6 | 7-12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23-27 | 28 |
| Symbol | NC | /CS1 | /RES | A0 | /WR | /RD | D0-D5 | D6 | D7 | VDD | VSS | VOUT | CAP3N | CAP1N | CAP1P | CAP2P | CAP2N | V4-V0 | P/S |
