Custom 40x4 Character High Quality LCD Screen STN LCD Display
Custom 40x4 Character High Quality LCD Screen STN LCD Display
| Outline Size(mm) | 190.0 x 54.0 x 14.0MAX |
| Lcd Type | STN, YellowGreen, Transflective/ Positive |
| Display Type | 40(characters)* 4(line) |
| View Area(mm) | 148.0 x 30.3 |
| Display Area(mm) | 140.45 x 23.16 |
| Dots Size(mm) | 0.50 x 0.55 |
| Dots Pitch(mm) | 0.57 x 0.62 |
| Character Size(mm) | 2.78 x 4.89 |
| Character Pitch(mm) | 3.53 x 6.09 |
| IC | SPLC780D OR EQV |
| View Direction | 6 o’clock or 12 o’clock |
| Backlight Type | None, YELLOW-GREEN backlight |
| Duty | 1/16 |
| Backlight(Type) | YELLOW-GREEN |
| Operation Temp(℃) | 0 to +50 |
| Storage Temp(℃) | -10 to +60 |

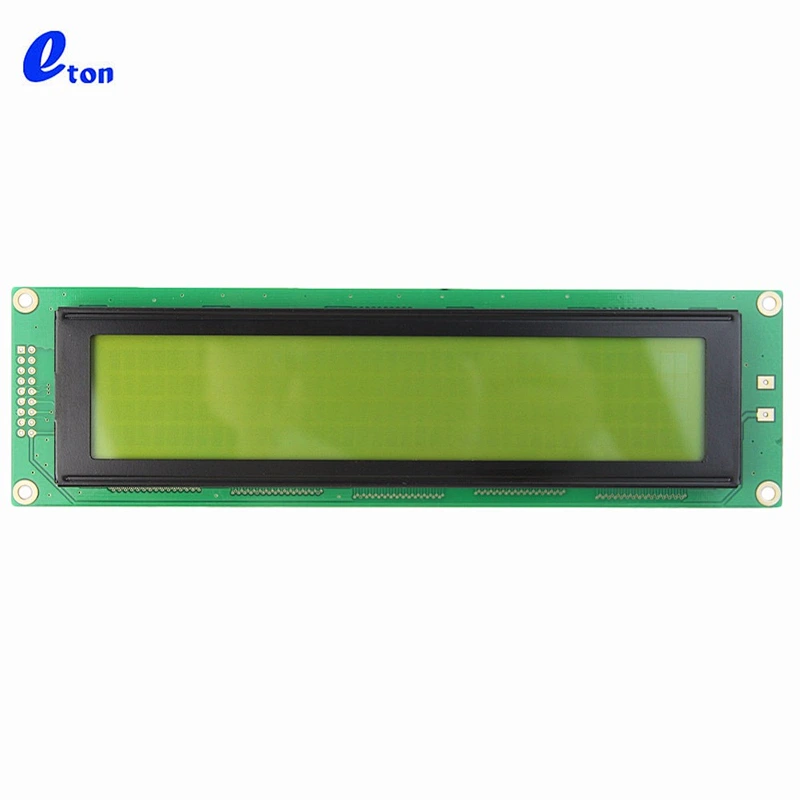

40x4 Character High Quality LCD Screen STN LCD Module

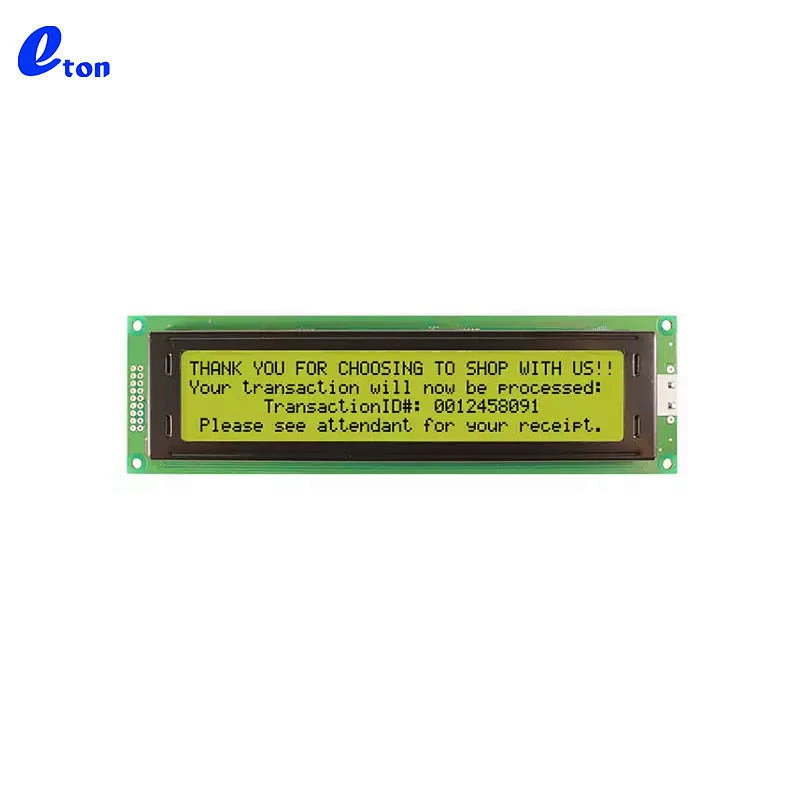

40x4 Character High Quality LCD Screen STN LCD Module

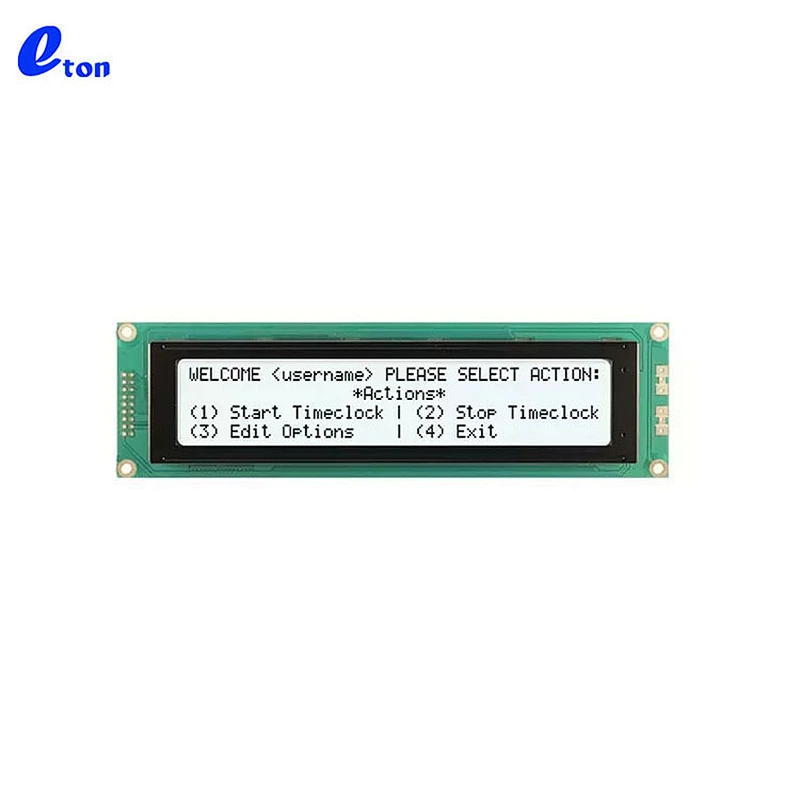

40x4 Character High Quality LCD Screen STN LCD Module
Package: Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton
Shipping : Shipping via DHL, UPS,TNT, FedEx Express, Air mail, and seamail
Application
Ralated product
1.Q: Are you manufactory or trade company?
A:We are professional manufactory, which specializes in TN, HTN, FSTN, STN monochrome LCD, LED backlights, LCD modules more than 6 years in Dongguan ! Our advanced full set equipments make sure good quality and competitive price!
2.Q: How can I get the samples?
A: Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect
3.Q: How long can I expect to get the sample?
A:Contour drawing: 2-3 days Sample time: 10-15 business days
4.Q:Will you offer free sample?
A: Yes, we usually provide 5-8pcs free samples, you just need to pay the tooling charge.
6.Q: Can you design the lcd in acccordance with our demand?
A:Sure.We will give you the best tooling charge.
7.Q:How to place orders ?
A:If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
1)Product information-Quantity,part number
2)Delivery time required.
3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if you have any in China.
8.Q:How long of mass production ?
A: 25-30 business days. It depends on different order quantities and part number.
