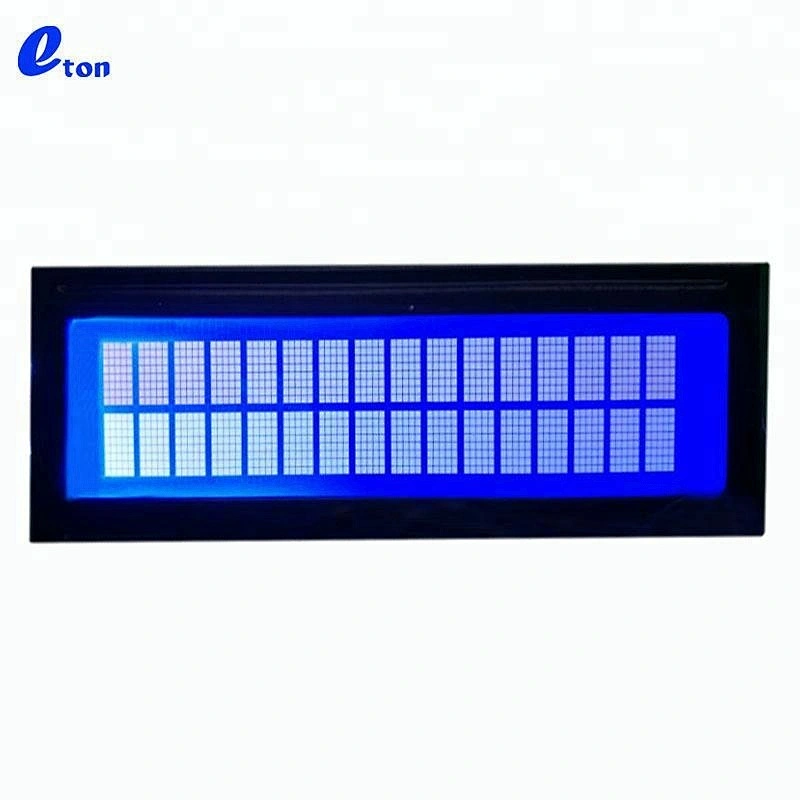

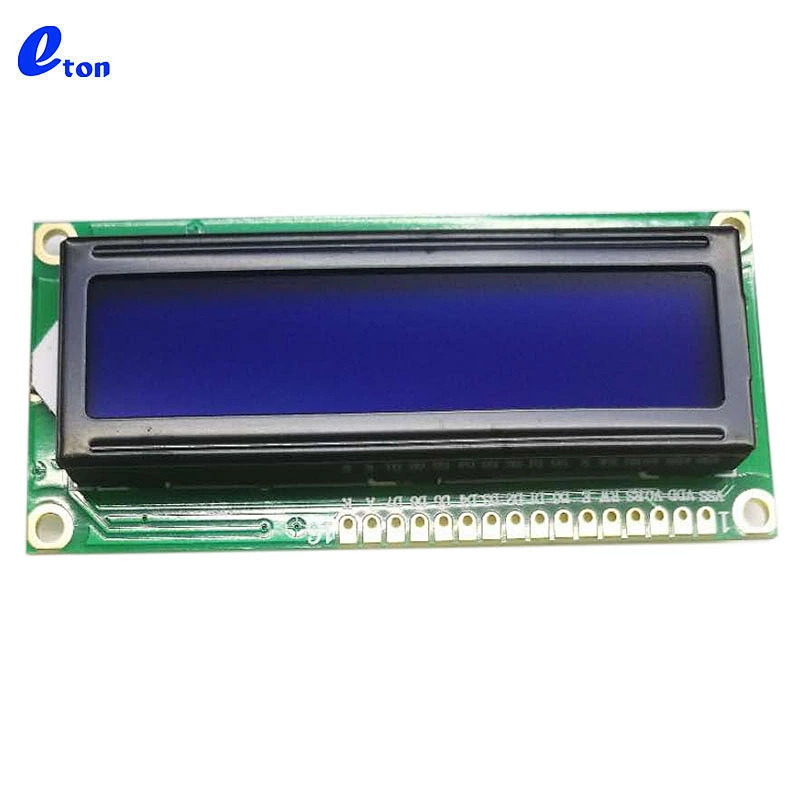

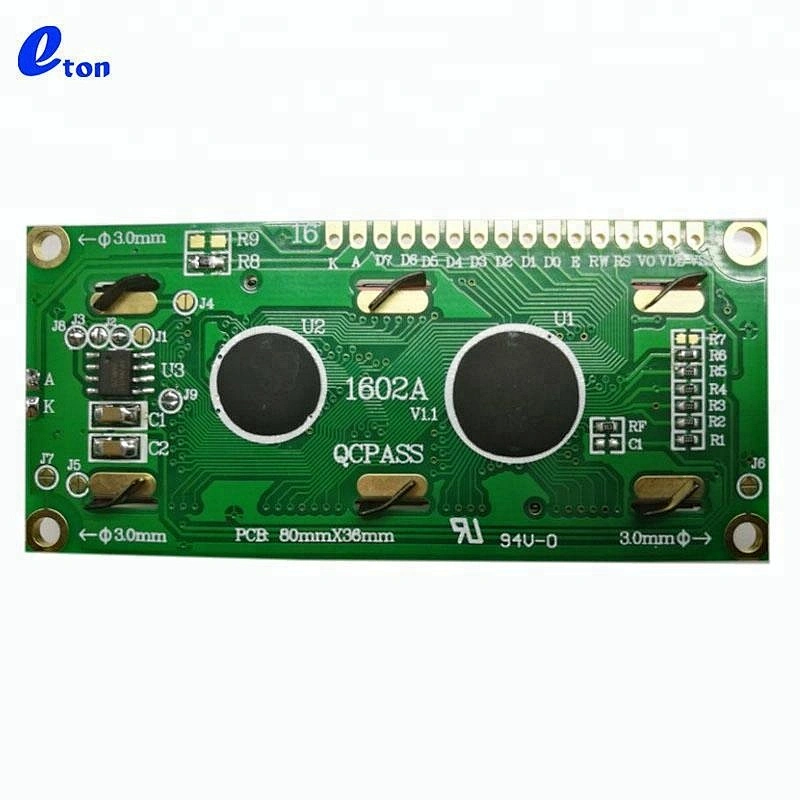

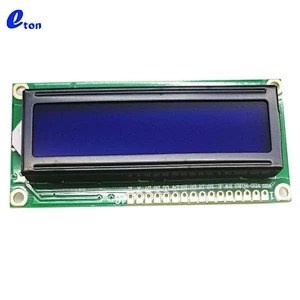

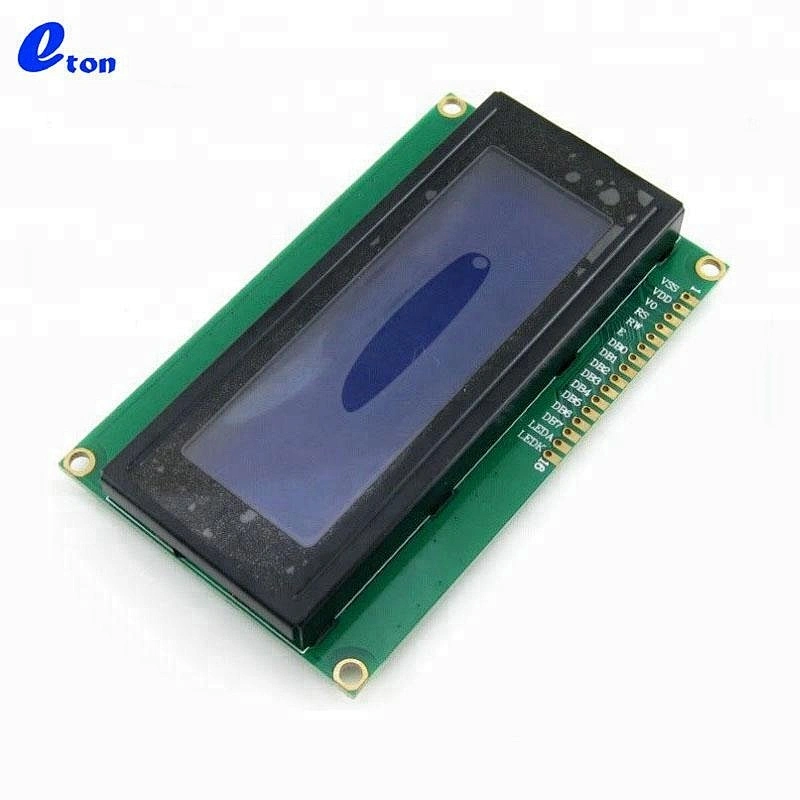

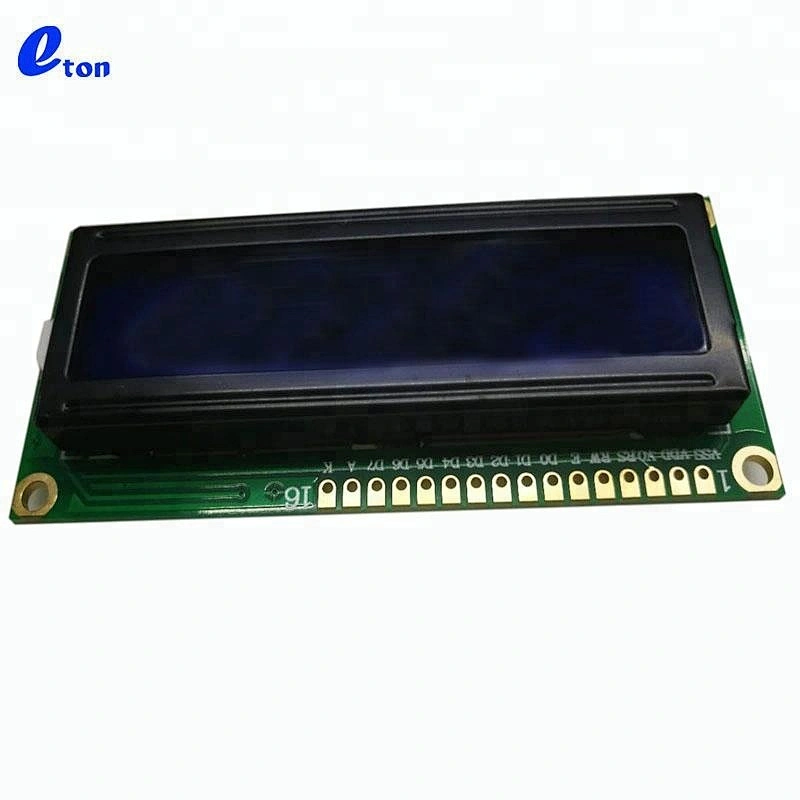

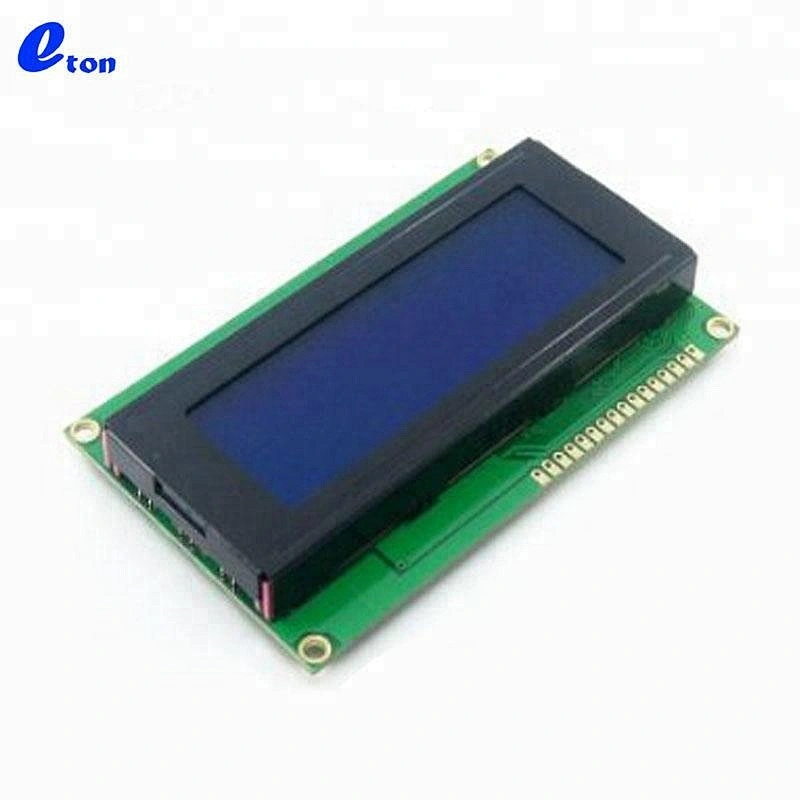

STN 1602 LCD Display Module
| Outline size | 80x36x13.5mm |
| LCD Type | STN/FSTN/TANSFLECTIVE/NEGATIVE/POSITIVE |
| LCD Color | Grey/blue/yellow-green/green/black |
| Display Type | 16 character X2 lines |
| View Area | 64.5x13.8mm |
| Controller | SPLC780D-01 & SPLC100 OR EQV |
| View Angle | 6:00 |
| VDD&VOP | 5.0V&5.0V |
| Backlight | white/blue/ yellow -green/green/red/orange |

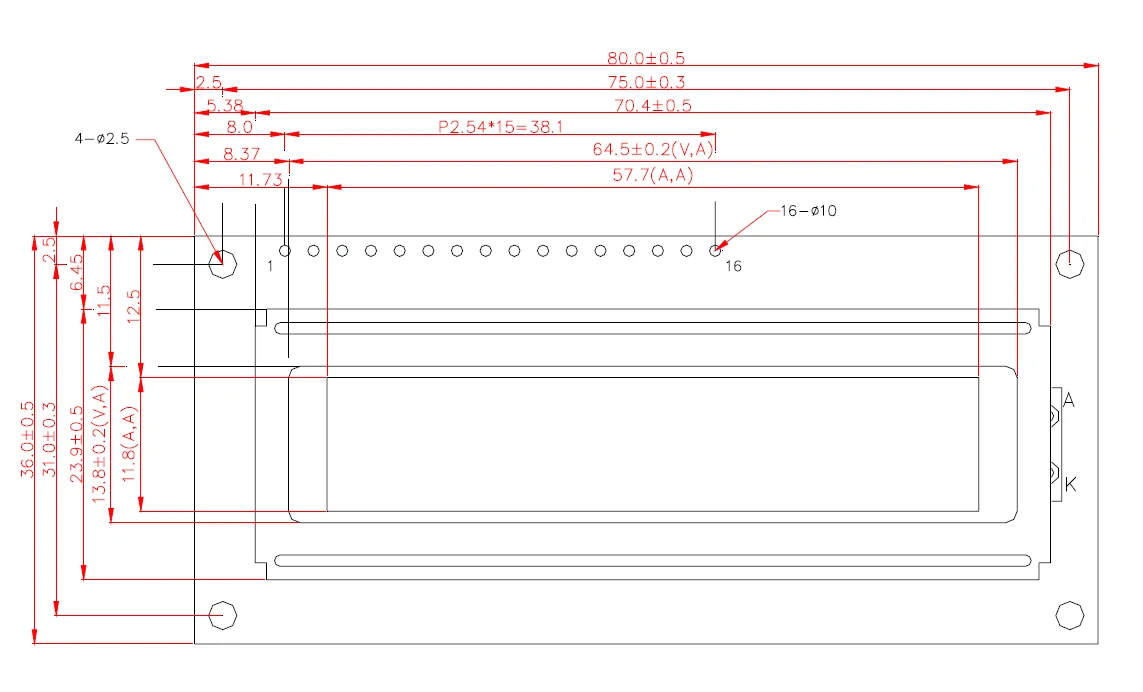

LCD Drawing

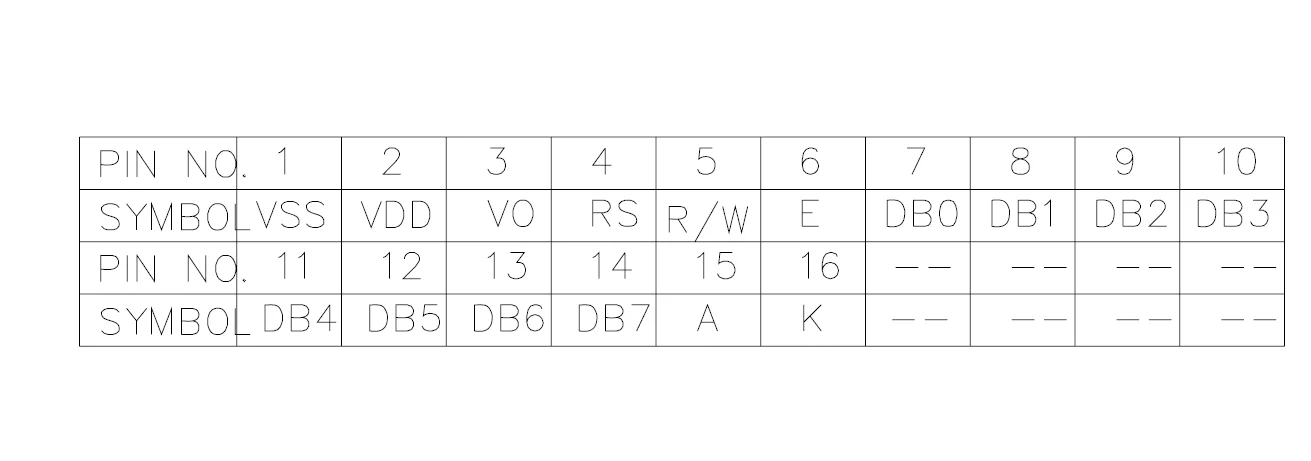

Interface
| After-sales service: | 24 hours everyday |
| Quality gurantee: | 6 month |
| Delivery: | 7-15days for bulk order, 5days for sample |
We are professional LCD&LCM manufacture and have 6 years experience on this .Our factory has strong research and design ability. The LCD and LCD module produced capacity included as below:
| LCD Thickness | 1.7mm, 2.0mm,2.8mm |
| LCD Display Type | COB ,COG ,TAB |
| Polarizer | Reflective , Transmissive,Transflective, Transparent |
| Range of operating temperature | -40C-90C |
| Connector PIN | Metal Pin, Heat seal, FPC ,Zebra, FFC |
| LCD color | Grey ,YELLOW-Green, Green, Black |
| Driving | 1/1 duty to 1/240 duty |
Packaging & Shipping
FAQ
1.Q: Are you manufactory or trade company?
A:We are professional manufactory, which specializes in TN, HTN, FSTN, STN monochrome LCD, LED backlights, LCD modules more than 6 years in Dongguan ! Our advanced full set equipments make sure good quality and competitive price!
2.Q: How can I get the samples?
A: Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect
3.Q: How long can I expect to get the sample?
A:Contour drawing: 2-3 days Sample time: 10-15 business days
4.Q:Will you offer free sample?
A: Yes, we usually provide 5-8pcs free samples, you just need to pay the tooling charge.
6.Q: Can you design the lcd in acccordance with our demand?
A:Sure.We will give you the best tooling charge.
7.Q:How to place orders ?
A:If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
1)Product information-Quantity,part number
2)Delivery time required.
3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if you have any in China.
8.Q:How long of mass production ?
A: 25-30 business days. It depends on different order quantities and part number.
