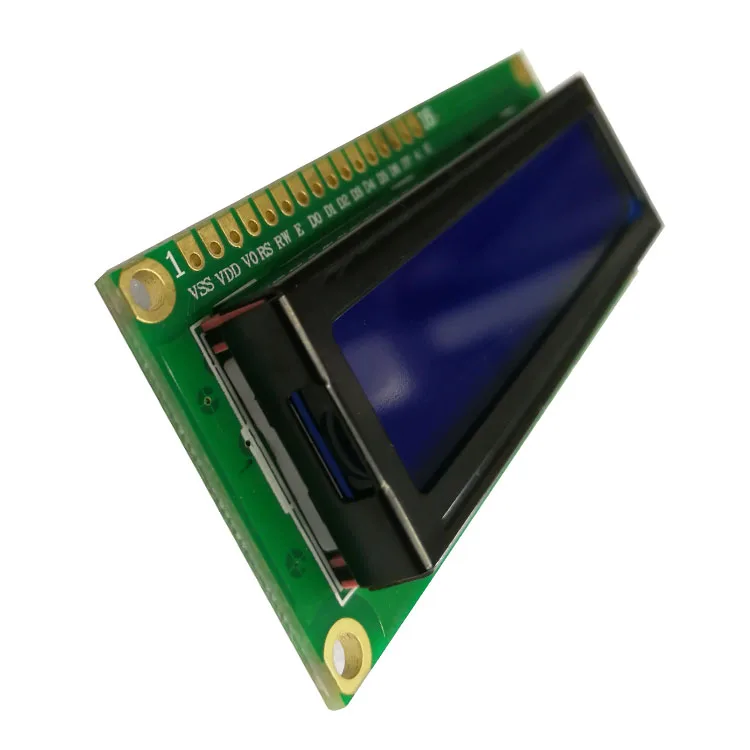

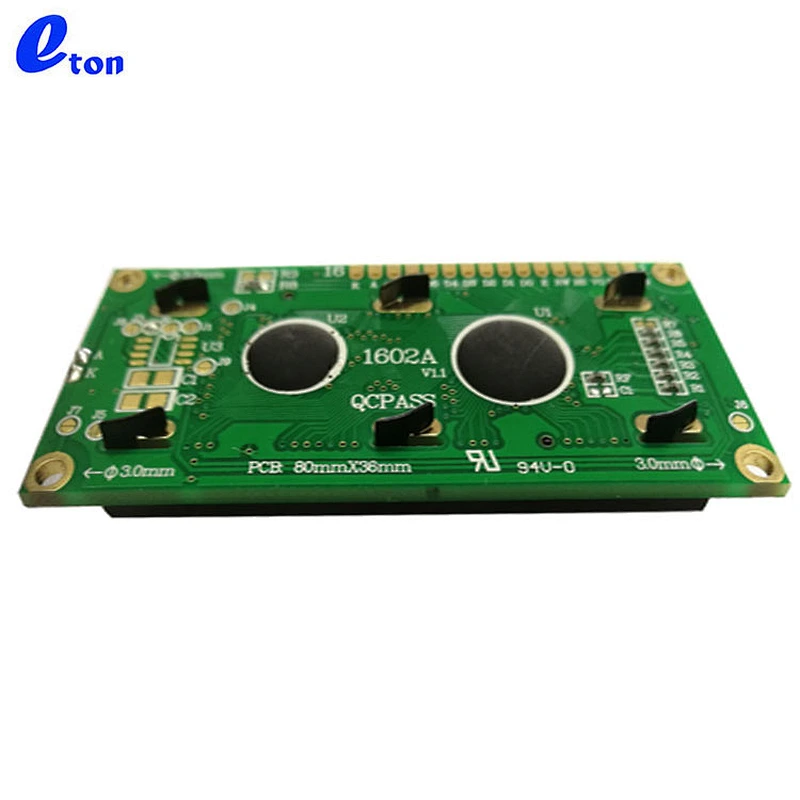

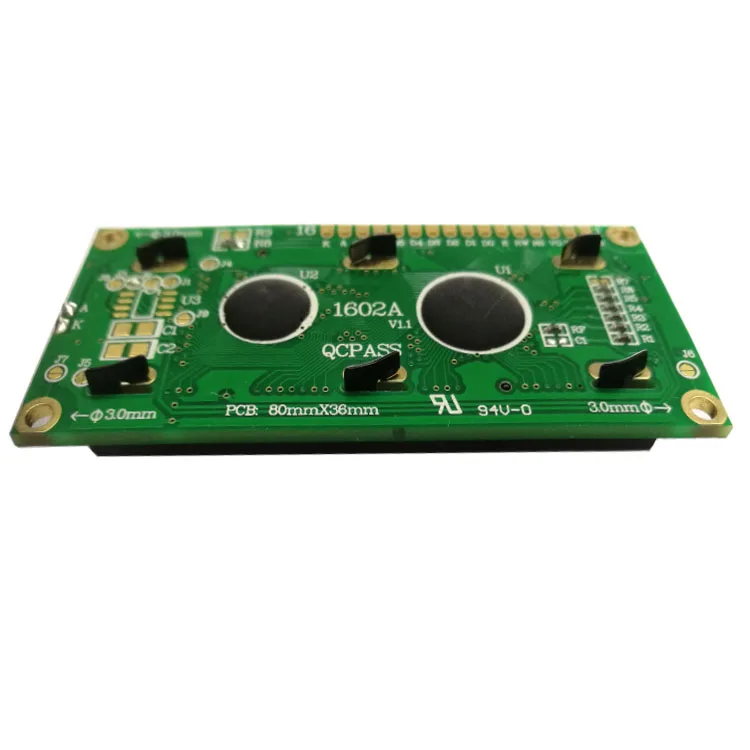

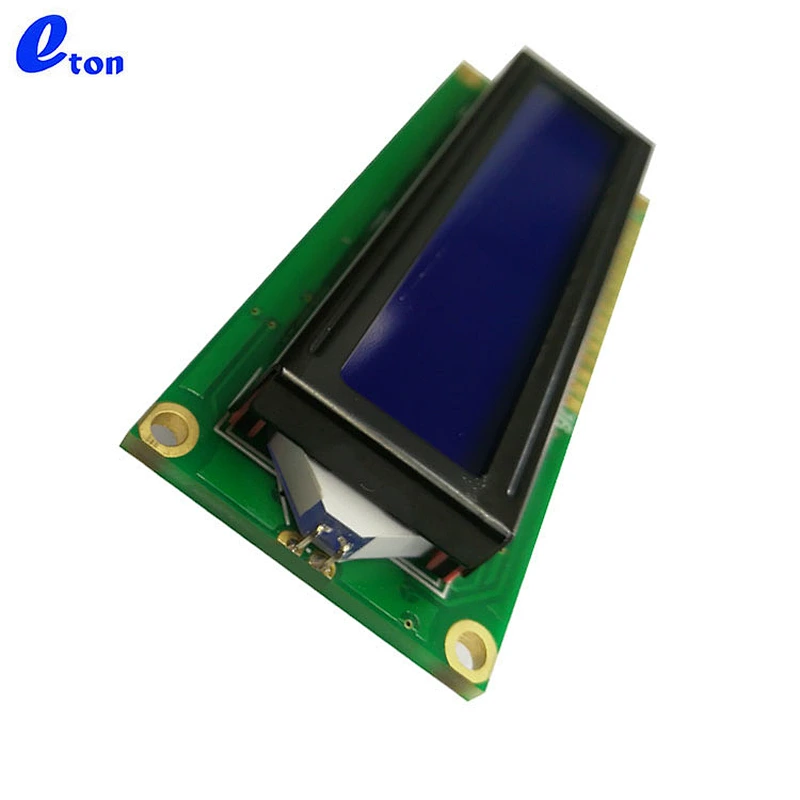

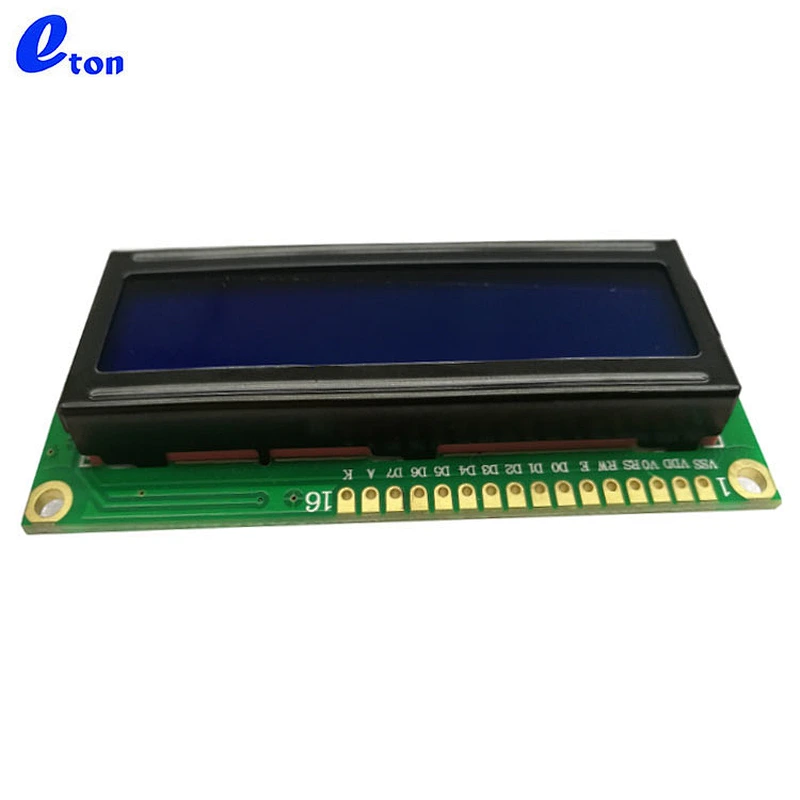

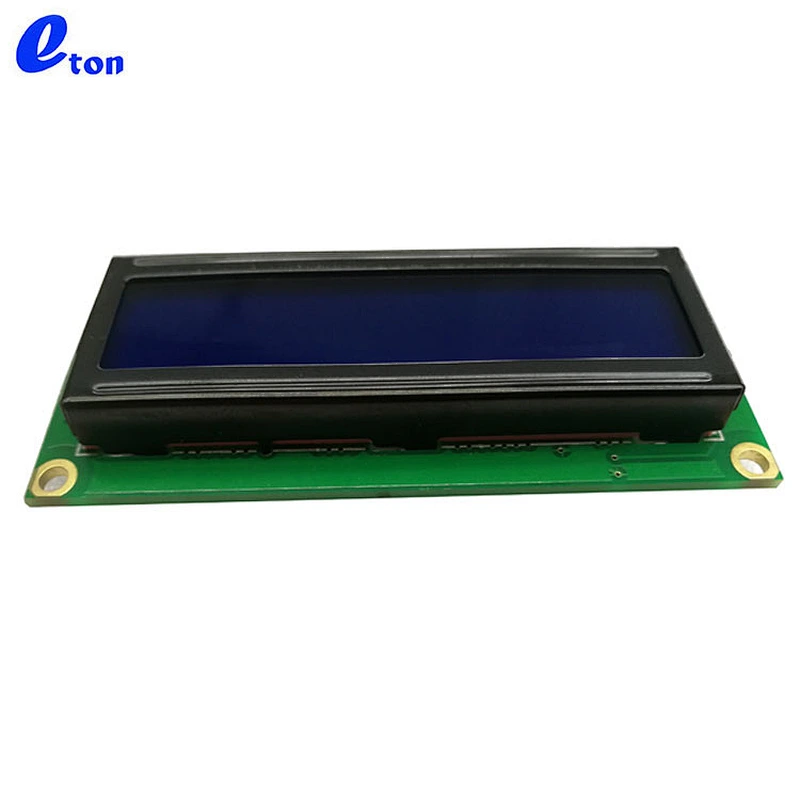

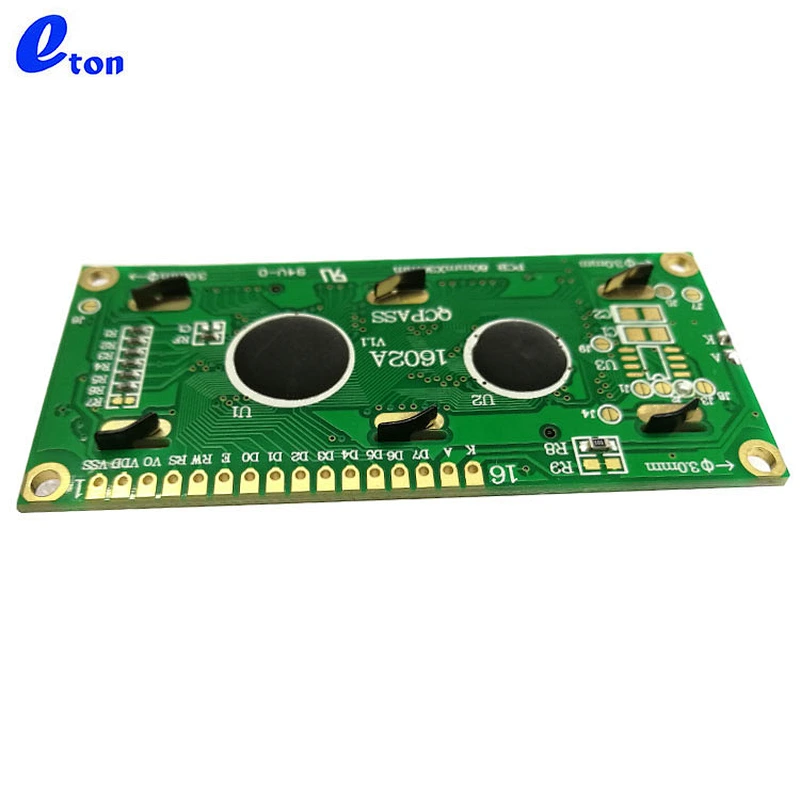

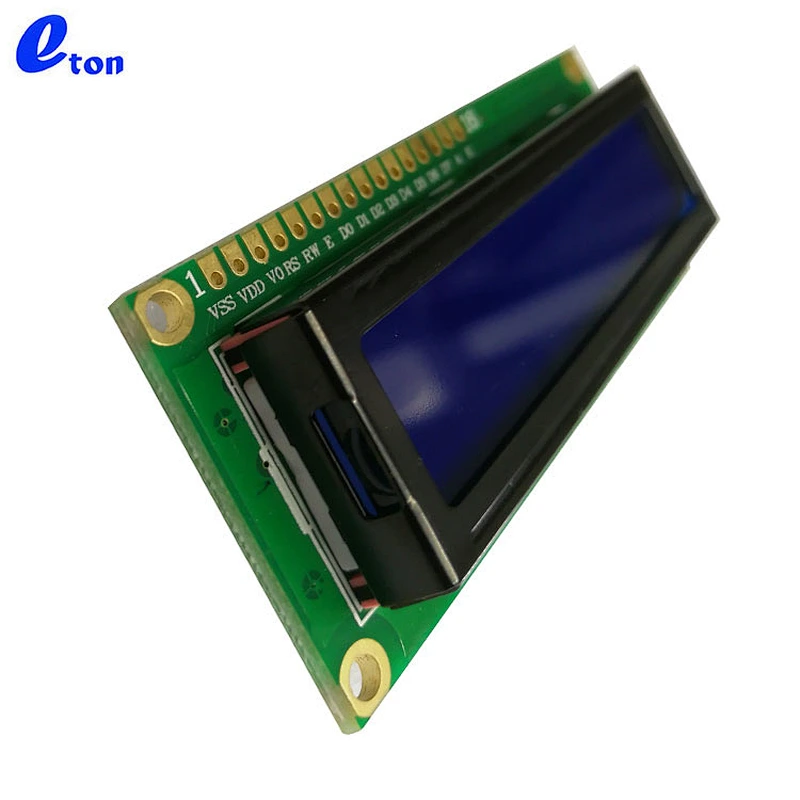

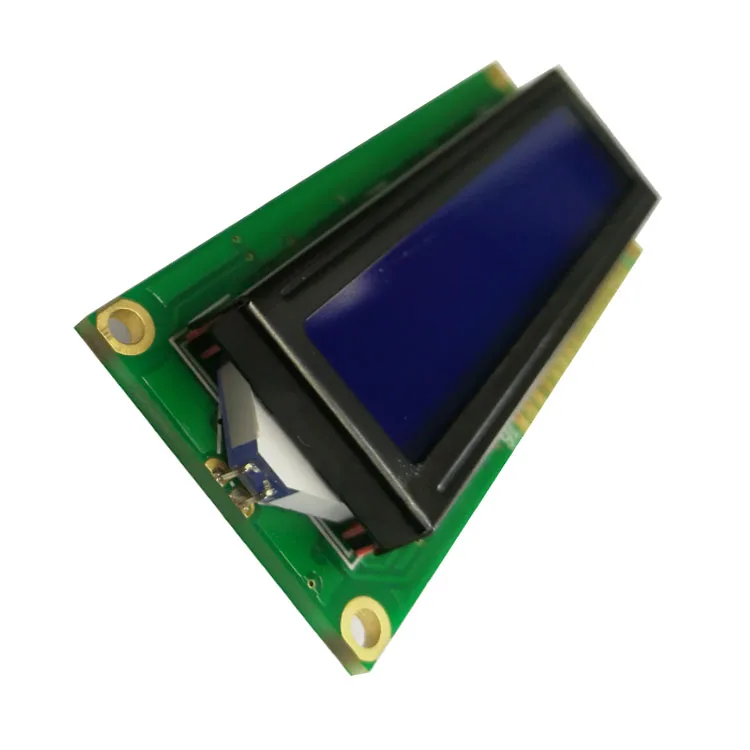

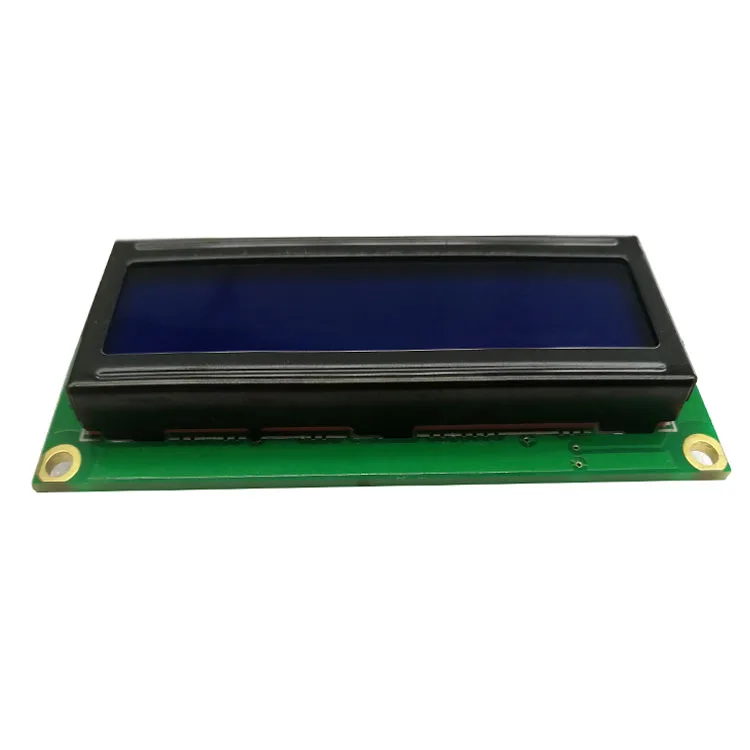

high quality custom 1602 character STN blue backlight lcd 16x2 module
high quality custom 1602 character STN blue backlight lcd 16x2 module
| Outline Size(mm) | 80.0(L)× 36.0(W) ×13.5(T)MAX |
| Lcd Type | STN, BLUE, Transflective / POSITIVE |
| Display Type | 16(characters) × 2(line) |
| View Area(mm) | 64.5×13.8 |
| Display Area(mm) | 57.7×11.8 |
| Dots Size(mm) | 0.65×0.55 |
| Dots Pitch(mm) | 0.70×0.60 |
| Character Size(mm) | 5.55×2.95 |
| Character Pitch(mm) | 6.25×3.65 |
| Controlle & Driver | SPLC780D-01 & SPLC100 OR EQV |
| View Direction | 6 O’Clock |
| Interface Mode | 8bit, 4bit |
| VDD&VOP(Type) | 3.3 V & 5 V |
| Backlight(Type) | WHITE |
| Operation Temp(℃) | 0 to +50 |
| Storage Temp(℃) | -10 to +60 |

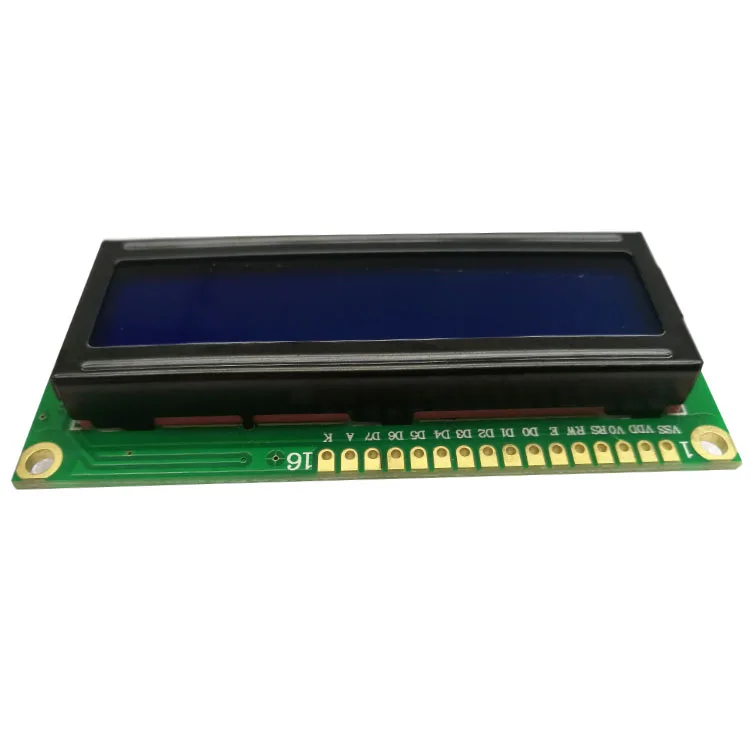

custom 1602 16x2 character STN blue backlight lcd module
custom 1602 16x2 character STN blue backlight lcd module
custom 1602 16x2 character STN blue backlight lcd module
Package: Soft Foam+ inner foam box + carton box
Shipping : Shipping via DHL, UPS,TNT, FedEx Express, Air mail, and seamail
1.Q: Are you manufactory or trade company?
A:We are professional manufactory, which specializes in TN, HTN, FSTN, STN monochrome LCD, LED backlights, LCD modules more than 6 years in Dongguan ! Our advanced full set equipments make sure good quality and competitive price!
2.Q: How can I get the samples?
A: Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect
3.Q: How long can I expect to get the sample?
A:Contour drawing: 2-3 daysSample time: 10-15 business days
4.Q:Will you offer free sample?
A: Yes, we usually provide1-2pcs free samples, you just need to pay the shipping cost.
5.Q: Can you design the lcd according to our demand?
A:Sure. But you need to pay for the reasonable tooling charge.
6.Q:How to place orders ?
A:If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
1)Product information-Quantity,part number
2)Delivery time required.
3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if you have any in China.
8.Q:How long of mass production ?
A:25-30 business days. It depends on different order quantities and part number.
