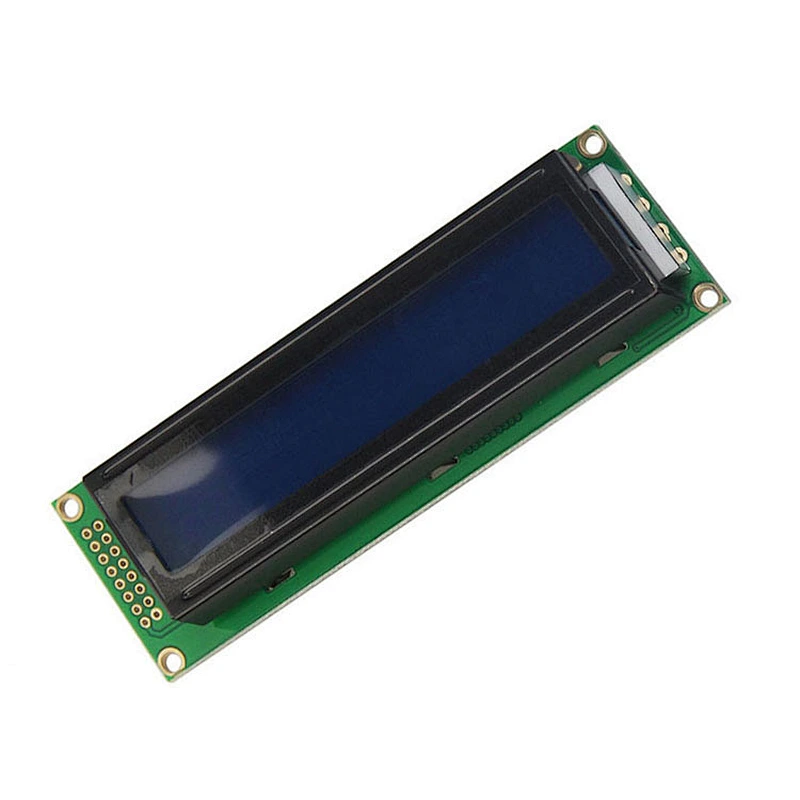

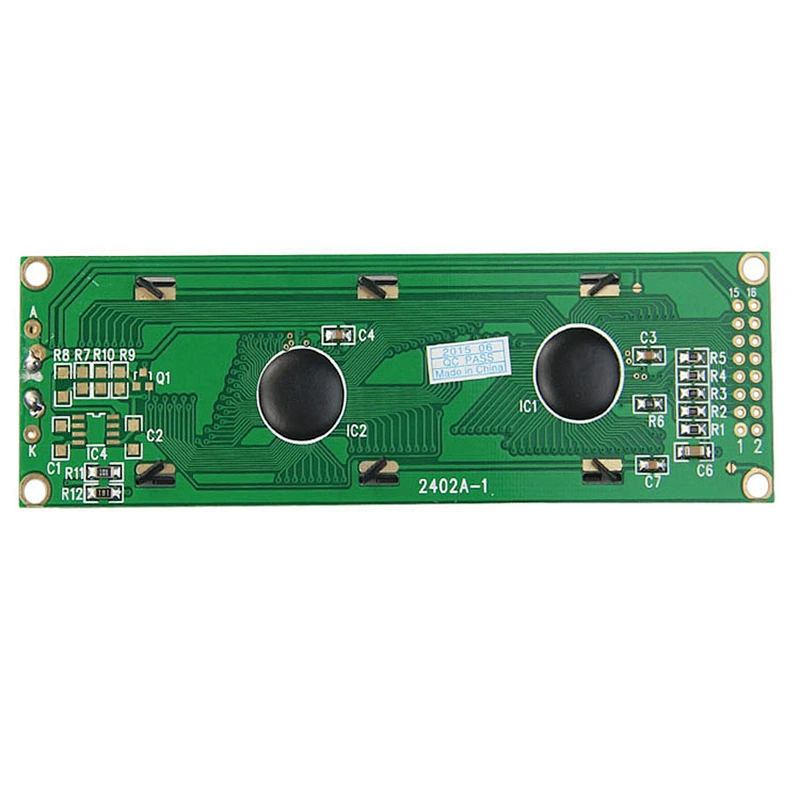

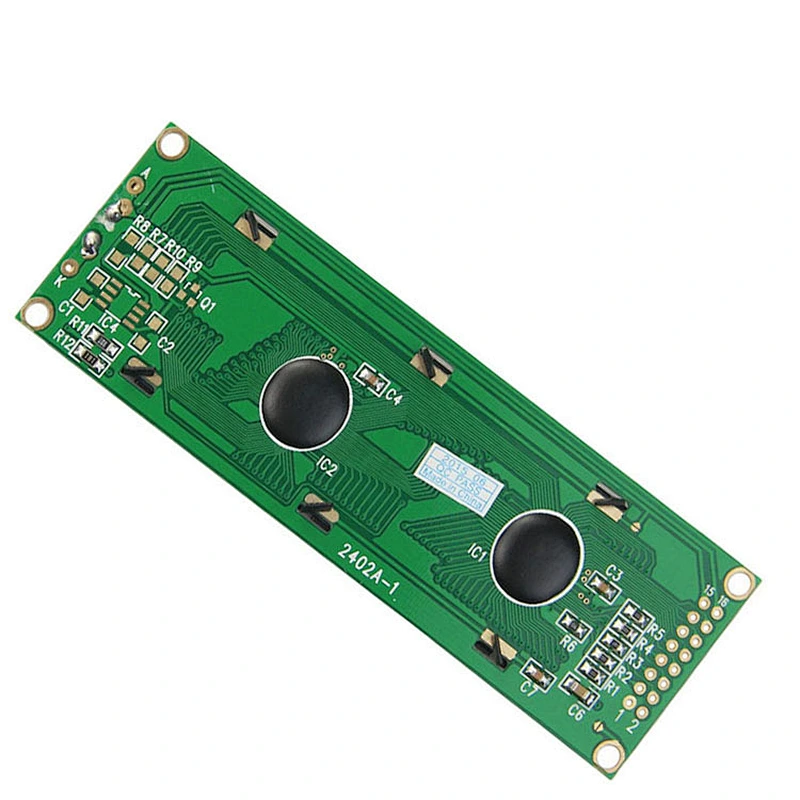

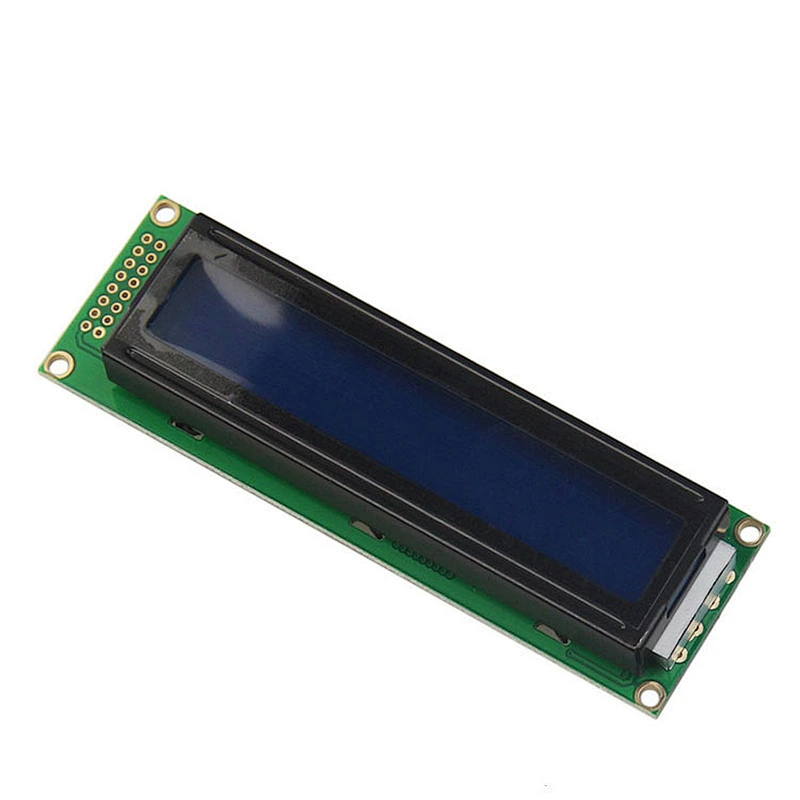

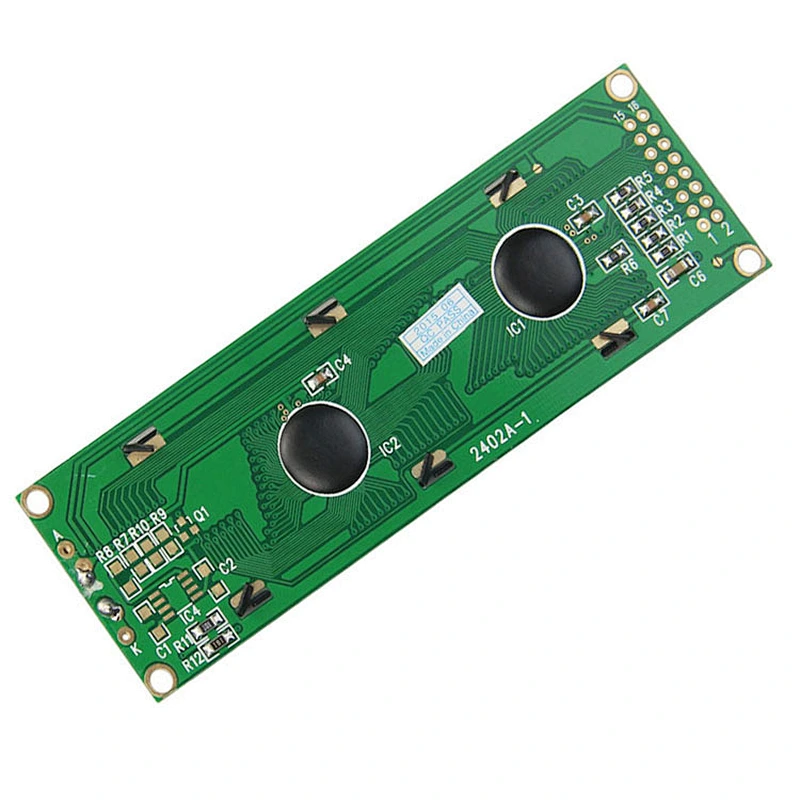

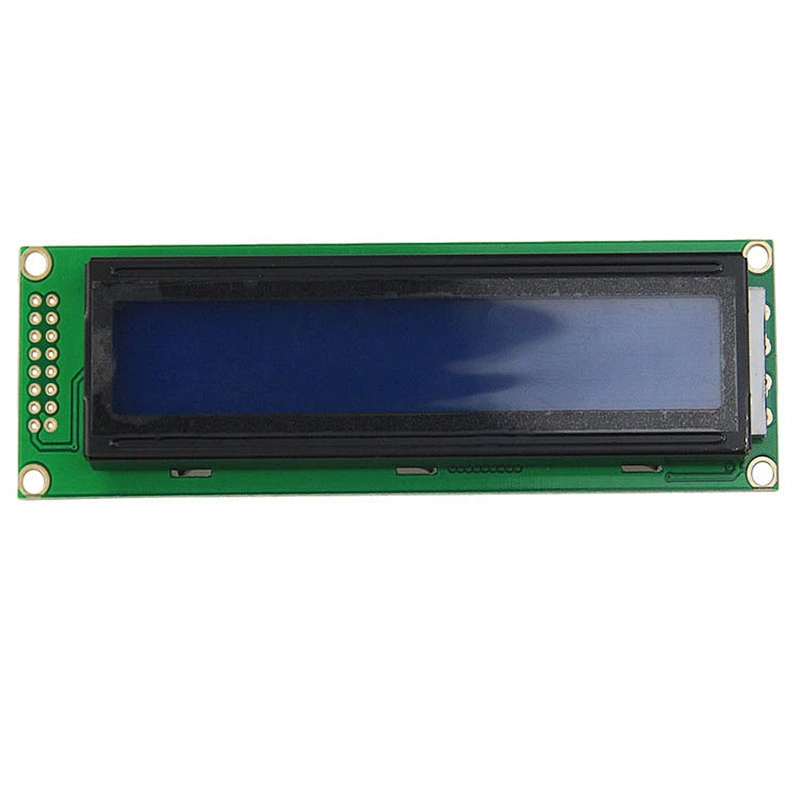

24x2 character STN Reflective lcd module display
Product Description
24x2 character STN Reflective lcd module display
| DISPLAY TYPE | 24(characters)* 2(line) |
| Lcd Type | STN, Gray, Reflective/ Positive |
| OUTLINE SIZE | 118.0(L)x 38.0(W)x 10.0(T)MAX |
| VA SIZE | 93.0x15.8mm |
| VIEWING DIRECTION | 6 O'CLOCK |
| VDD&VOP(Type) | 5.0 V & 4.2 V |
| Controller& driver | S6A0069X01-C0CX |
| OPERATING TEMP | 0 to +50℃ |
| STORAGE TEMP | -20 to +60℃ |
| Backlight(Type) | --- |
